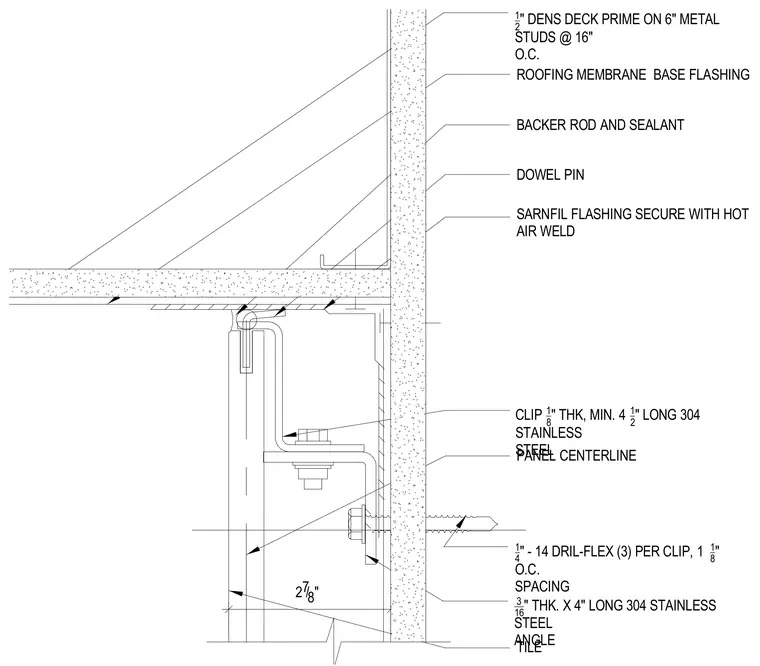

A tile to parapet transition assembly is constructed over six-inch metal studs spaced at sixteen inches on center with a half-inch Dens Deck Prime substrate. The roofing membrane base flashing transitions to a Sarnfil flashing secured with a hot air weld at the panel centerline with a dowel pin. A three-sixteenth-inch thick by four-inch long 304 stainless steel angle supports the assembly, anchored with a one-eighth-inch thick by minimum four-and-a-half-inch long 304 stainless steel clip. Each clip is fastened using three quarter-inch by fourteen Dril-Flex screws spaced at one-and-an-eighth-inch spacing. A backer rod and sealant joint seals the transition.
2 7 /8" SARNFIL FLASHING SECURE WITH HOT AIR WELD PANEL CENTERLINE DOWEL PIN TILE 1_ 4 " - 14 DRIL-FLEX (3) PER CLIP, 1 1_ 8 " O.C. SPACING CLIP 1_ 8 " THK, MIN. 4 1_ 2 " LONG 304 STAINLESS STEEL BACKER ROD AND SEALANT 1_ 2 " DENS DECK PRIME ON 6" METAL STUDS @ 16" O.C. ROOFING MEMBRANE BASE FLASHING 3__ 16 " THK. X 4" LONG 304 STAINLESS STEEL ANGLE
