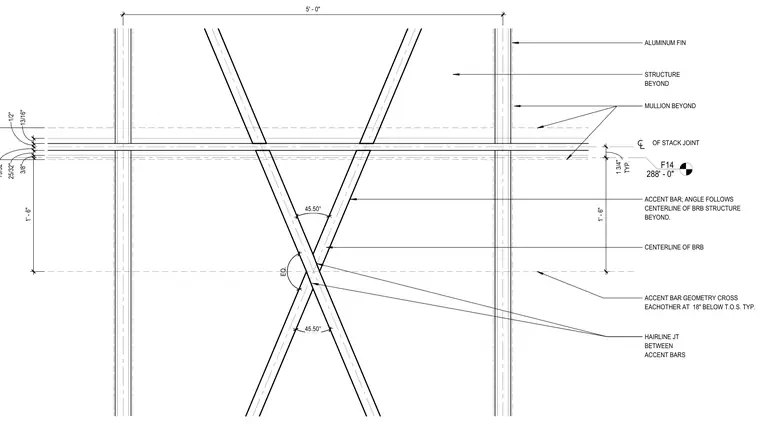

This elevation detail shows intersecting accent bars forming an X-configuration over a buckling-restrained braced frame and aluminum fin structure. The accent bars follow the centerline of the structural bracing behind with a hairline joint between them. The geometry crosses eighteen inches below the top of steel typically, set within a five-foot wide module. Vertical mullions and an aluminum fin are positioned beyond the primary intersecting elements along the centerline of the stack joint.
F14 288' - 0" OF STACK JOINT ALUMINUM FIN STRUCTURE BEYOND ACCENT BAR; ANGLE FOLLOWS CENTERLINE OF BRB STRUCTURE BEYOND. HAIRLINE JT BETWEEN ACCENT BARS T Y P . 1 3 / 4 " 1 3 / 1 6 " 1 / 2 " 1 9 / 3 2 " 2 5 / 3 2 " 3 / 8 " 1 ' - 6 " MULLION BEYOND 5 ' - 0 " ACCENT BAR GEOMETRY CROSS EACHOTHER AT 18" BELOW T.O.S. TYP. E Q . 1 ' - 6 " 4 5 . 5 0 ° 4 5 . 5 0 ° CENTERLINE OF BRB
