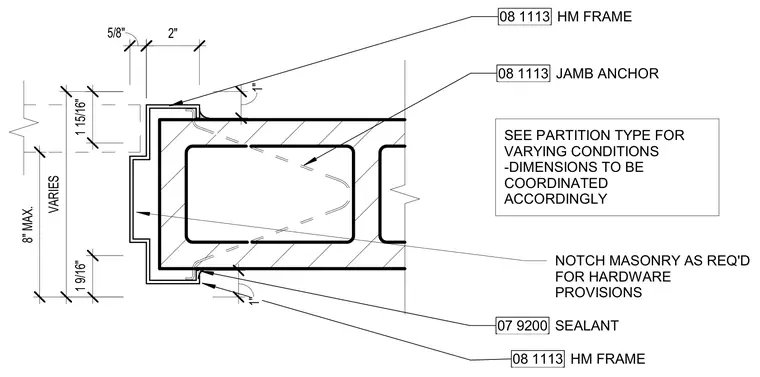

A hollow metal frame wraps the jamb of a concrete masonry unit partition with a maximum eight-inch dimension. Jamb anchors secure the frame into the masonry cores, and the masonry is notched as required for hardware provisions. Perimeter joints are sealed with sealant at both interior and exterior junctions.
2" 5/8" 1 15/16" 1 9/16" SEE PARTITION TYPE FOR VARYING CONDITIONS -DIMENSIONS TO BE COORDINATED ACCORDINGLY 08 1113 HM FRAME NOTCH MASONRY AS REQ'D FOR HARDWARE PROVISIONS 07 9200 SEALANT 1" 1" 08 1113 HM FRAME VARIES 8" MAX. 08 1113 JAMB ANCHOR
