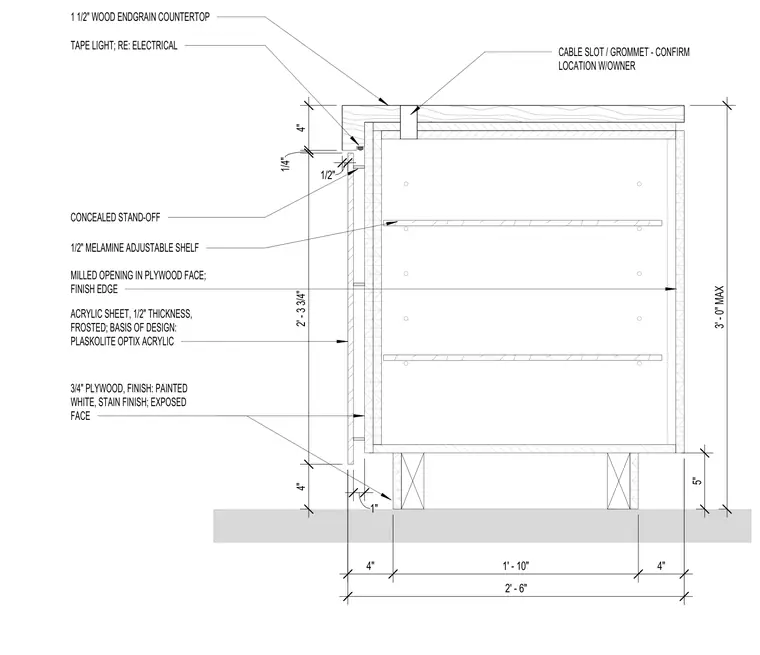

An accessible reception counter section features a one-and-a-half-inch wood endgrain countertop supported by a three-quarter-inch plywood casework structure with a painted white and stain finish. A frosted half-inch thick acrylic sheet mounts to the front face via concealed stand-offs, positioned with a four-inch clearance from the floor and integrated tape lighting at the underside of the counter overhang. The interior contains half-inch melamine adjustable shelves supported on pin fixtures within the milled plywood box. A cable slot and grommet penetrates the top surface with location confirmed by the owner.
ACRYLIC SHEET, 1/2" THICKNESS, FROSTED; BASIS OF DESIGN: PLASKOLITE OPTIX ACRYLIC 3/4" PLYWOOD, FINISH: PAINTED WHITE, STAIN FINISH; EXPOSED FACE 1 1/2" WOOD ENDGRAIN COUNTERTOP CONCEALED STAND-OFF 1/2" MELAMINE ADJUSTABLE SHELF MILLED OPENING IN PLYWOOD FACE; FINISH EDGE CABLE SLOT / GROMMET - CONFIRM LOCATION W/OWNER TAPE LIGHT; RE: ELECTRICAL 4" 1' - 10" 4" 2' - 6" 1" 5" 3' - 0" MAX 4" 1/4" 2' - 3 3/4" 4" 1/2"
