The assembly consists of one-and-a-half-inch outside diameter typical steel pipe rails spaced at a maximum of five feet on center. Vertical half-inch diameter steel baluster rods are spaced at a maximum of four inches on center. Each baluster rod is welded at both the top and bottom to the steel pipes.

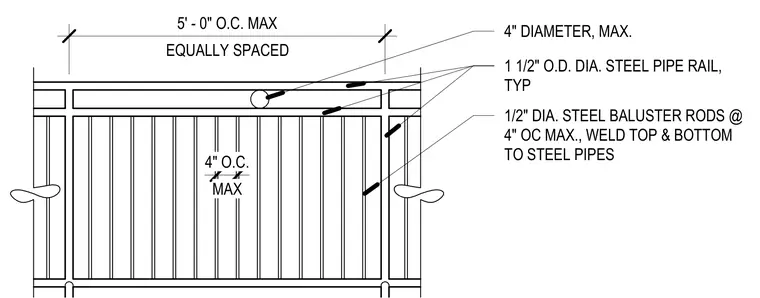

EQUALLY SPACED 5' - 0" O.C. MAX MAX 4" O.C. 1 1/2" O.D. DIA. STEEL PIPE RAIL, TYP 4" DIAMETER, MAX. 1/2" DIA. STEEL BALUSTER RODS @ 4" OC MAX., WELD TOP & BOTTOM TO STEEL PIPES
