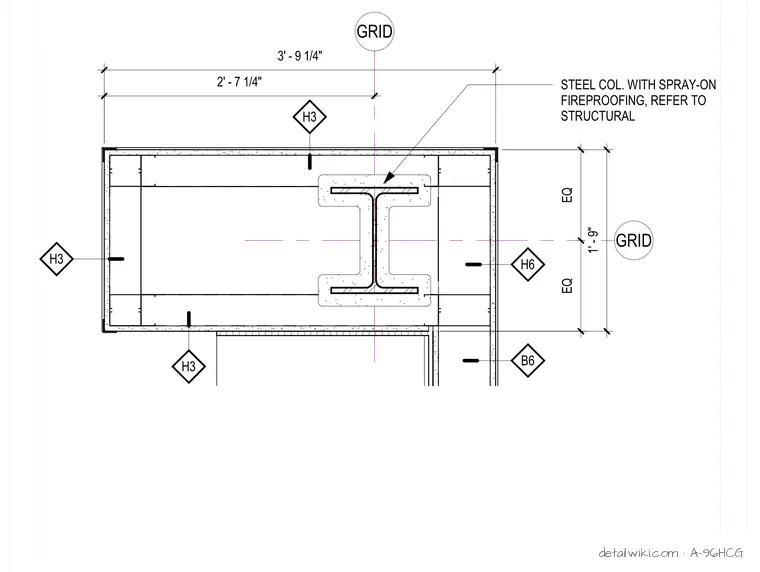

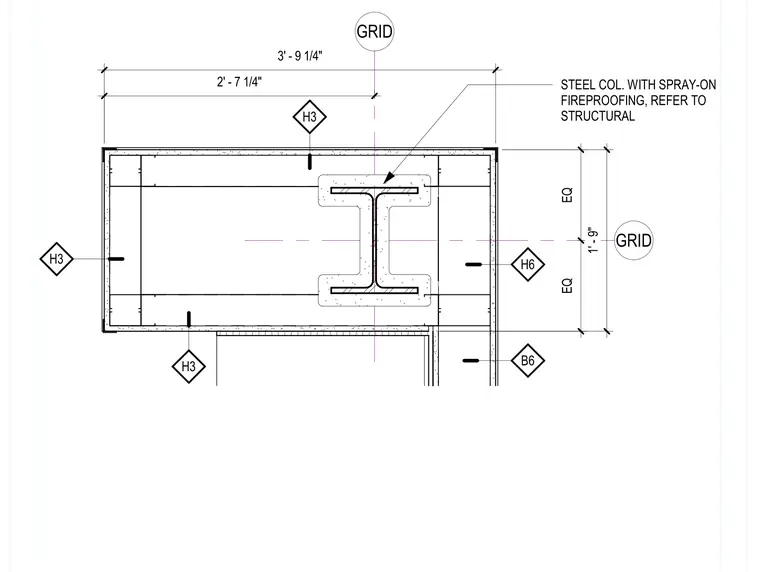

A rectangular millwork wrap surrounds a structural steel column. The steel column features spray-on fireproofing, with structural details deferred to the structural drawings. The millwork enclosure measures 3 feet 9 1/4 inches in total width and 1 foot 9 inches in depth, centered on the column grid lines. The assembly includes callouts for interior finish conditions, referenced by tags H3, H6, and B6.
