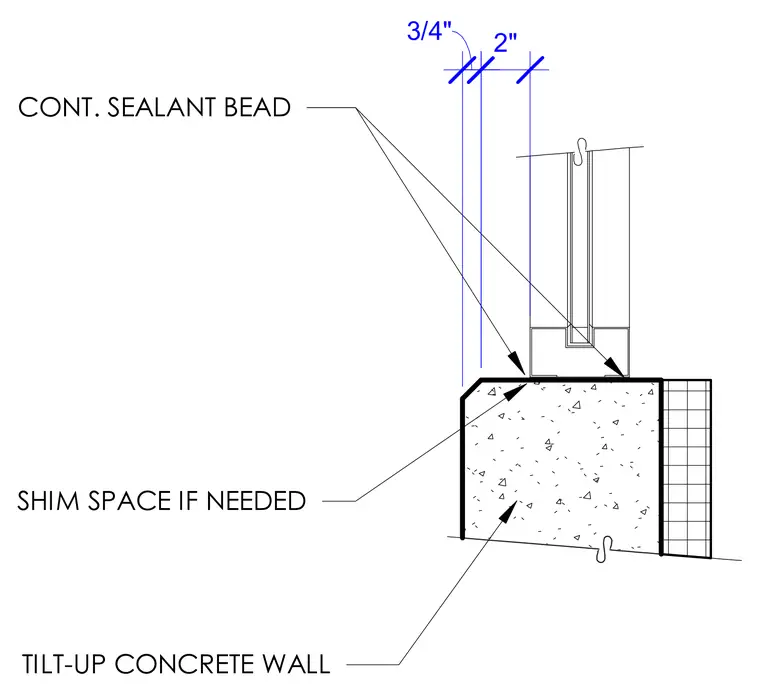

A continuous sealant bead seals the joint adjacent to the tilt-up concrete wall assembly. A shim space is provided as needed beneath the adjoining framing element with a three-quarter-inch and two-inch dimension layout.
SHIM SPACE IF NEEDED TILT-UP CONCRETE WALL CONT. SEALANT BEAD 3/4" 2"
