Plastic laminate panels over one-half-inch particle board are mounted to light gauge framing using continuous Z-clip tracks and two-inch Z-clips. A one-inch architectural reveal with accent paint separates the wall finish from the one-half-inch hardwood veneer ceiling.

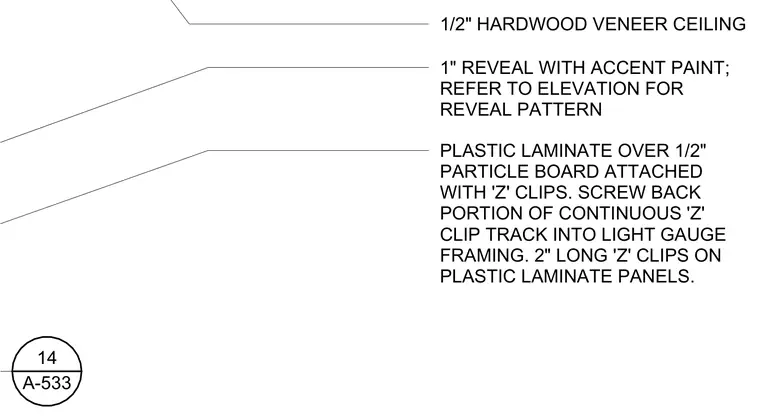

A-533 14 PLASTIC LAMINATE OVER 1/2" PARTICLE BOARD ATTACHED WITH 'Z' CLIPS. SCREW BACK PORTION OF CONTINUOUS 'Z' CLIP TRACK INTO LIGHT GAUGE FRAMING. 2" LONG 'Z' CLIPS ON PLASTIC LAMINATE PANELS. 1" REVEAL WITH ACCENT PAINT; REFER TO ELEVATION FOR REVEAL PATTERN 1/2" HARDWOOD VENEER CEILING
