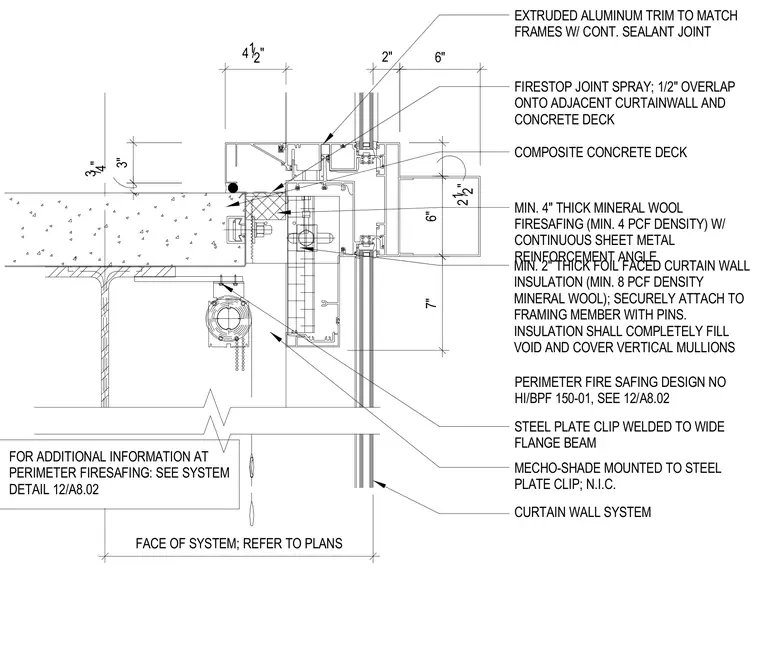

This architectural detail shows a curtainwall sill assembly intersecting a composite concrete floor slab supported by a wide flange steel beam. A steel plate clip is welded to the wide flange beam to support both the curtain wall framing and a shade mounting bracket. Perimeter fire safing consisting of a minimum four-inch thick mineral wool insulation with a density of four pounds per cubic foot and continuous sheet metal reinforcement angle fills the void at the slab edge. Firestop joint spray with a one-half-inch overlap onto the adjacent curtainwall and concrete deck seals the perimeter joint. Extruded aluminum trim matching the frames is installed with a continuous sealant joint. Additionally, a minimum two-inch thick foil-faced curtain wall insulation with a density of eight pounds per cubic foot is securely attached to the framing member with pins to completely fill the void and cover the vertical mullions.
FACE OF SYSTEM; REFER TO PLANS 2" 4 1 /2" 3/4" 3" 21/2" 7" 6" 6" CURTAIN WALL SYSTEM COMPOSITE CONCRETE DECK STEEL PLATE CLIP WELDED TO WIDE FLANGE BEAM MECHO-SHADE MOUNTED TO STEEL PLATE CLIP; N.I.C. EXTRUDED ALUMINUM TRIM TO MATCH FRAMES W/ CONT. SEALANT JOINT FIRESTOP JOINT SPRAY; 1/2" OVERLAP ONTO ADJACENT CURTAINWALL AND CONCRETE DECK PERIMETER FIRE SAFING DESIGN NO HI/BPF 150-01, SEE 12/A8.02 FOR ADDITIONAL INFORMATION AT PERIMETER FIRESAFING: SEE SYSTEM DETAIL 12/A8.02 MIN. 4" THICK MINERAL WOOL FIRESAFING (MIN. 4 PCF DENSITY) W/ CONTINUOUS SHEET METAL REINFORCEMENT ANGLE MIN. 2" THICK FOIL FACED CURTAIN WALL INSULATION (MIN. 8 PCF DENSITY MINERAL WOOL); SECURELY ATTACH TO FRAMING MEMBER WITH PINS. INSULATION SHALL COMPLETELY FILL VOID AND COVER VERTICAL MULLIONS
