An acoustical ceiling tile system terminates at a wall angle adjacent to a framed bulkhead. The bulkhead consists of two-and-a-half-inch metal studs faced with Type X gypsum board, finished smooth with taped joints for a gloss paint finish. The assembly establishes a maximum two-foot pocket inside the curtain wall line as sized per plan.

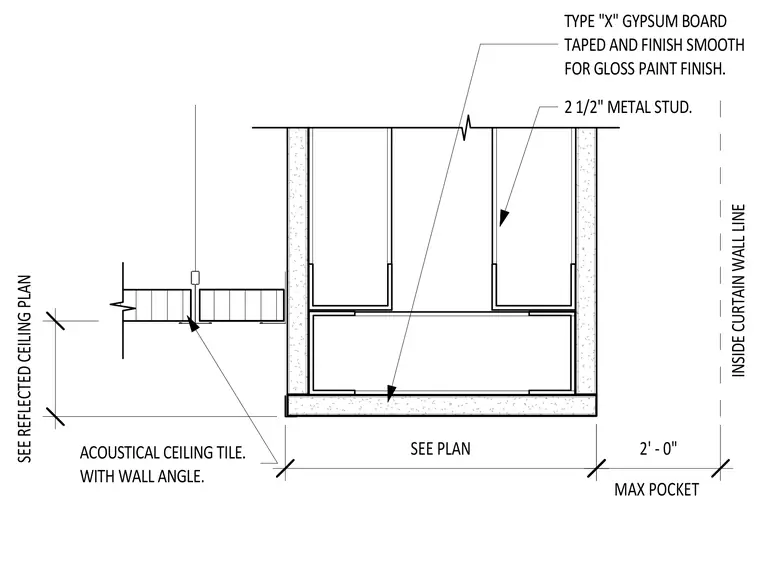

ACOUSTICAL CEILING TILE. WITH WALL ANGLE. 2 1/2" METAL STUD. TYPE "X" GYPSUM BOARD TAPED AND FINISH SMOOTH FOR GLOSS PAINT FINISH. SEE REFLECTED CEILING PLAN SEE PLAN MAX POCKET 2' - 0" INSIDE CURTAIN WALL LINE
