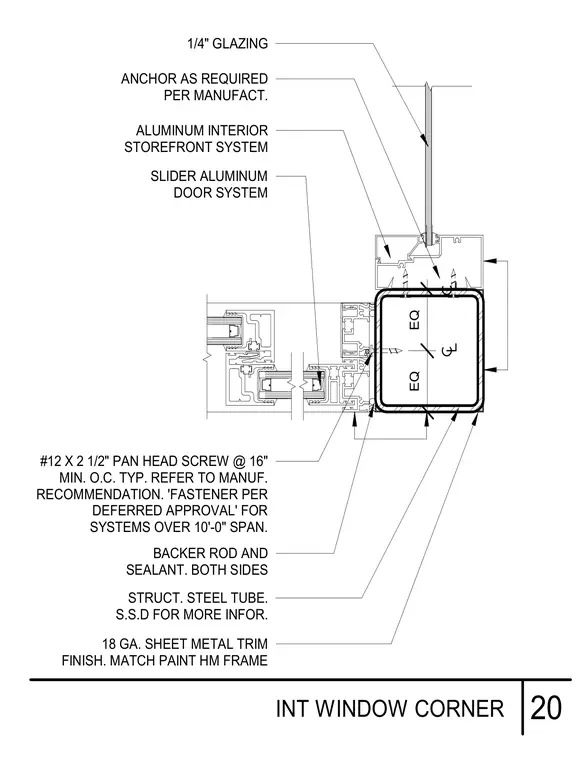

An interior aluminum storefront system and slider aluminum door system intersect at a structural steel tube corner column. The aluminum framing is secured with number 12 by two and one-half inch pan head screws at sixteen inches maximum on center typical, with fasteners subject to deferred approval for spans over ten feet. Backer rod and sealant are applied to both sides of the frame junction. An 18 gauge sheet metal trim finish matches the paint of the hollow metal frame. One-quarter inch glazing is set within the aluminum framing, and anchors are installed per the manufacturer's requirements.
18 GA. SHEET METAL TRIM FINISH. MATCH PAINT HM FRAME STRUCT. STEEL TUBE. S.S.D FOR MORE INFOR. ANCHOR AS REQUIRED PER MANUFACT. 1/4" GLAZING SLIDER ALUMINUM DOOR SYSTEM BACKER ROD AND SEALANT. BOTH SIDES ALUMINUM INTERIOR STOREFRONT SYSTEM EQ EQ #12 X 2 1/2" PAN HEAD SCREW @ 16" MIN. O.C. TYP. REFER TO MANUF. RECOMMENDATION. 'FASTENER PER DEFERRED APPROVAL' FOR SYSTEMS OVER 10'-0" SPAN. 20 INT WINDOW CORNER
