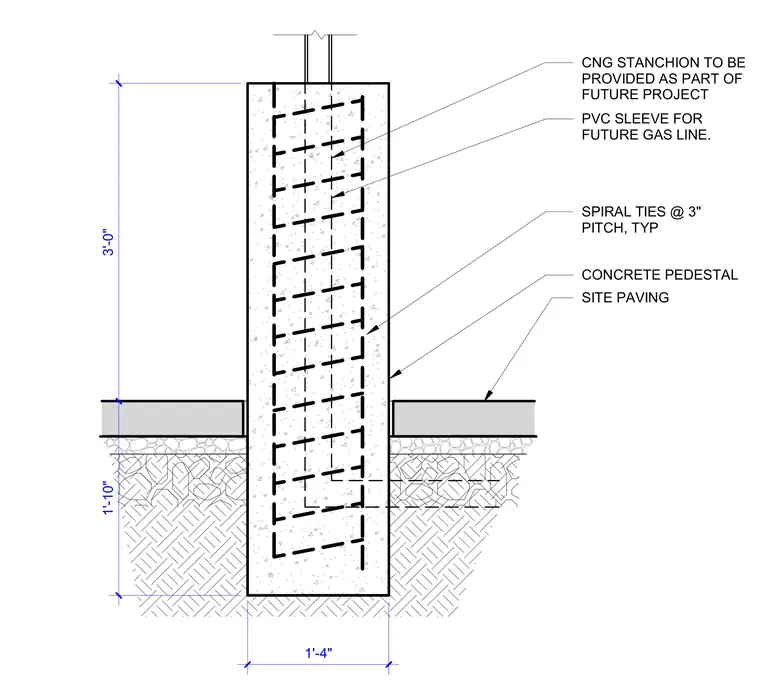

A concrete pedestal measuring one foot four inches in width extends three feet above site paving and one foot ten inches below grade into subgrade soil. The reinforced concrete element contains spiral ties spaced at three inches on center typically. A vertical polyvinyl chloride sleeve is embedded for a future gas line. A compressed natural gas stanchion is designated to be provided as part of a future project.
SITE PAVING PVC SLEEVE FOR FUTURE GAS LINE. CONCRETE PEDESTAL 1'-10" 3'-0" 1'-4" SPIRAL TIES @ 3" PITCH, TYP CNG STANCHION TO BE PROVIDED AS PART OF FUTURE PROJECT
