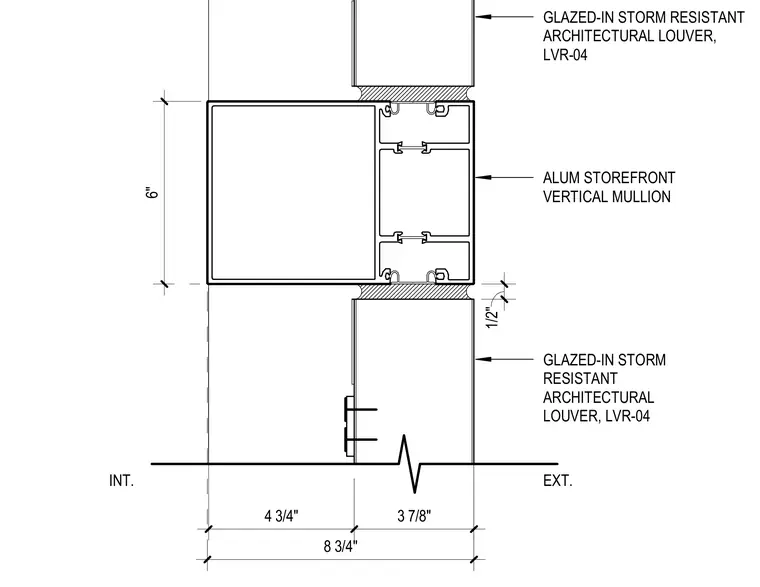

An aluminum storefront vertical mullion frames a glazed-in storm-resistant architectural louver designated as LVR-04. The mullion measures six inches in depth, positioned between stacked louver sections with sealant joints. Exterior dimensions indicate a depth of 3 7/8 inches for the louver profile and 4 3/4 inches for the interior profile, totaling 8 3/4 inches overall. The assembly transitions from the interior space to the exterior environment across the vertical framing members.
ALUM STOREFRONT VERTICAL MULLION GLAZED-IN STORM RESISTANT ARCHITECTURAL LOUVER, LVR-04 GLAZED-IN STORM RESISTANT ARCHITECTURAL LOUVER, LVR-04 4 3/4" 3 7/8" 6" 1/2" 8 3/4" EXT. INT.
