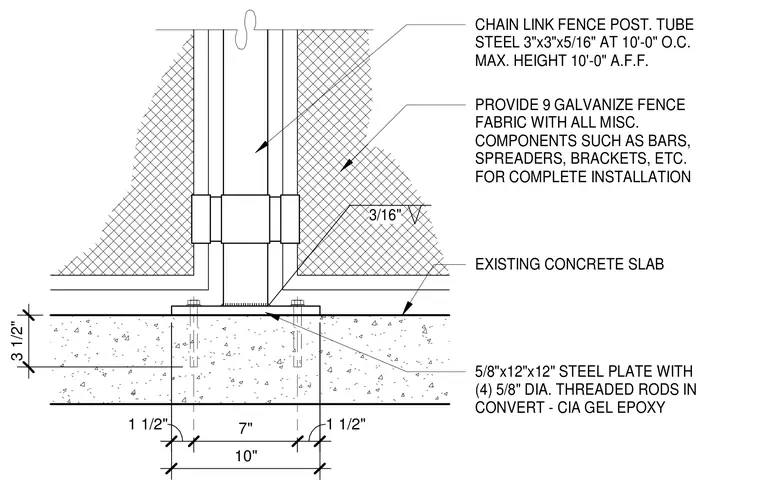

A 3x3x5/16 inch hollow structural section steel tube fence post is welded to a 5/8x12x12 inch steel base plate with a 3/16 inch fillet weld. The base plate is secured to an existing concrete slab using four 5/8 inch diameter threaded rods set in epoxy. Galvanized fence fabric and miscellaneous components including bars, spreaders, and brackets are installed complete. The maximum fence height is 10 feet above the finished floor, with posts spaced at a maximum of 10 feet on center.
3/16" 1 1/2" 7" 1 1/2" 10" 3 1/2" EXISTING CONCRETE SLAB 5/8"x12"x12" STEEL PLATE WITH (4) 5/8" DIA. THREADED RODS IN CONVERT - CIA GEL EPOXY PROVIDE 9 GALVANIZE FENCE FABRIC WITH ALL MISC. COMPONENTS SUCH AS BARS, SPREADERS, BRACKETS, ETC. FOR COMPLETE INSTALLATION CHAIN LINK FENCE POST. TUBE STEEL 3"x3"x5/16" AT 10'-0" O.C. MAX. HEIGHT 10'-0" A.F.F.
