Architectural · A-94HEM

Stair Landing Handrail and Guard Assembly

Materials

Concrete Metal (misc.)

Elements

Columns Partitions Stairs Railings / Guards Floors / Slabs Decks Connections / Plates Roof / Floor Openings

Connections

Welded Connection Deck Attachment

About this detail

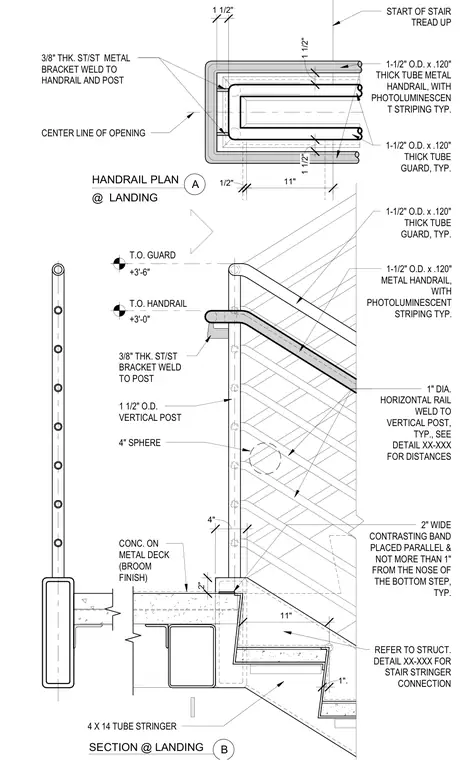

A stair intermediate landing assembly features a concrete floor slab on metal deck supported by a four-by-four-inch tube stringer. A one-and-a-half-inch outside diameter by point-one-twenty-inch thick metal handrail and guard system is anchored with vertical posts welded to three-eighths-inch thick stainless steel brackets. One-inch diameter horizontal rails are welded to the vertical posts to maintain a four-inch sphere spacing limitation. The handrail incorporates photoluminescent striping, and a two-inch wide contrasting band is positioned parallel to the nose of the bottom step. The stair stringer connection to the structure is coordinated per structural details.
