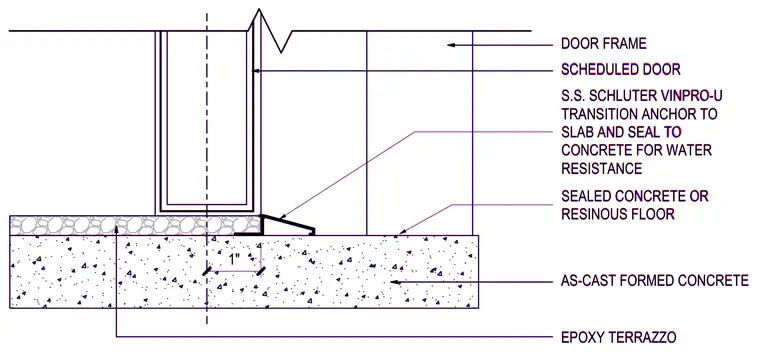

A door threshold transition sits at an as-cast formed concrete slab. An epoxy terrazzo finish is on one side and a sealed concrete or resinous floor is on the other, divided by a stainless steel Schluter Vinpro-U transition strip anchored to the slab and sealed for water resistance. The scheduled door fits within a door frame seated directly above the floor transition.
EPOXY TERRAZZO 1" DOOR FRAME AS-CAST FORMED CONCRETE SCHEDULED DOOR SEALED CONCRETE OR RESINOUS FLOOR S.S. SCHLUTER VINPRO-U TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE EPOXY TERRAZZO 1" DOOR FRAME AS-CAST FORMED CONCRETE SCHEDULED DOOR SEALED CONCRETE OR RESINOUS FLOOR S.S. SCHLUTER VINPRO-U TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE
