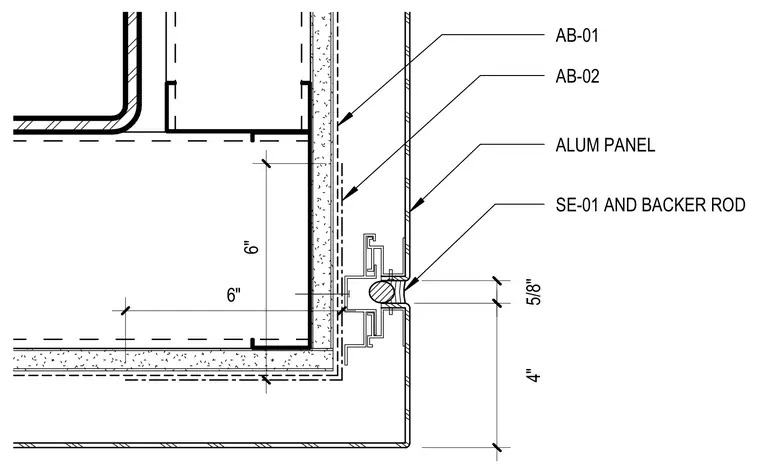

An exterior aluminum panel wraps an outer building corner over two layers of backup materials designated AB-01 and AB-02. A vertical joint at the corner is sealed with SE-01 sealant and a backer rod, maintaining a five-eighths-inch joint width. Dimensions of six inches and four inches locate the corner subframing and panel reveals.
