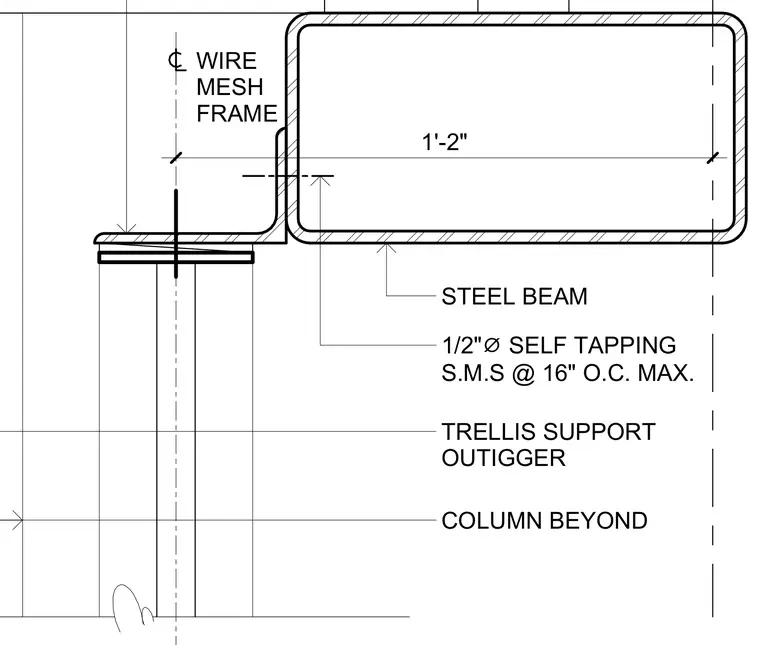

A wire mesh frame connects to a steel beam with one-half-inch diameter self-tapping sheet metal screws spaced at a maximum of sixteen inches on center. A trellis support outrigger positions beneath the assembly, with a column located beyond. The wire mesh frame aligns with a designated centerline and is anchored directly to the steel framing member.
WIRE MESH FRAME 1'-2" STEEL BEAM 1/2" ⌀ SELF TAPPING S.M.S @ 16" O.C. MAX. TRELLIS SUPPORT OUTIGGER COLUMN BEYOND
