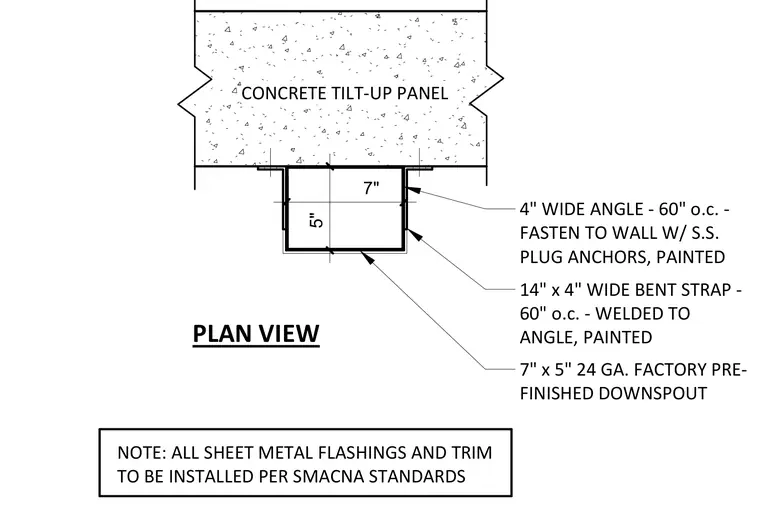

A seven by five inch twenty-four gauge factory pre-finished downspout is mounted flush against a concrete tilt-up panel. Fourteen by four inch wide bent straps spaced at sixty inches on center wrap around the downspout and are welded to wide steel angles. The four-inch wide angles are fastened to the concrete wall with stainless steel plug anchors at sixty inches on center. All components are painted.
7" 5" 4" WIDE ANGLE - 60" o.c. - FASTEN TO WALL W/ S.S. PLUG ANCHORS, PAINTED 7" x 5" 24 GA. FACTORY PRE- FINISHED DOWNSPOUT 14" x 4" WIDE BENT STRAP - 60" o.c. - WELDED TO ANGLE, PAINTED NOTE: ALL SHEET METAL FLASHINGS AND TRIM TO BE INSTALLED PER SMACNA STANDARDS PLAN VIEW CONCRETE TILT-UP PANEL
