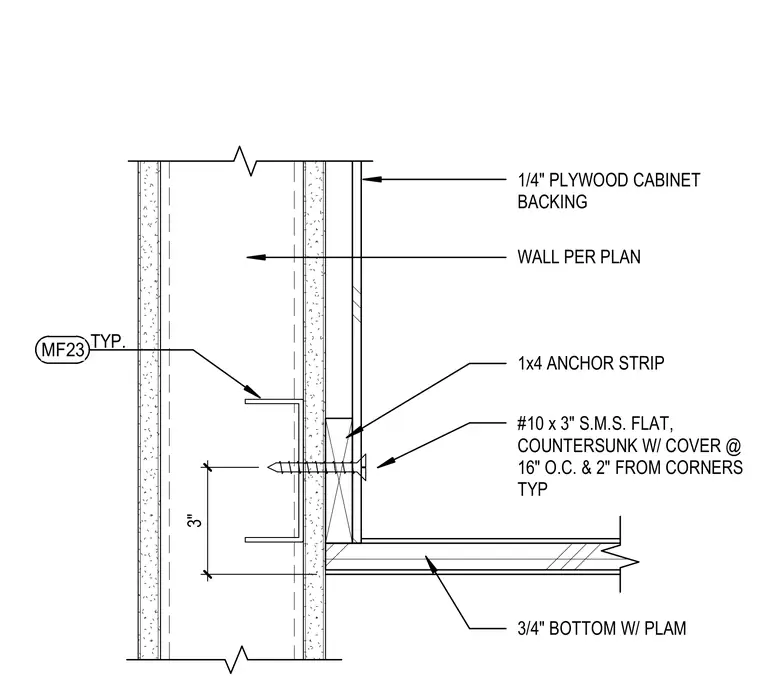

An upper cabinet bottom with plastic laminate finish bears against a wall assembly sized per plan with a quarter-inch plywood cabinet backing. A 1x4 wood anchor strip is secured to the wall backing with number ten by 3-inch flat countersunk sheet metal screws with covers at 16 inches on center and 2 inches from corners typically. The connection accommodates an adjacent light gauge metal framing track designated MF23.
#10 x 3" S.M.S. FLAT, COUNTERSUNK W/ COVER @ 16" O.C. & 2" FROM CORNERS TYP 1/4" PLYWOOD CABINET BACKING WALL PER PLAN 3/4" BOTTOM W/ PLAM 1x4 ANCHOR STRIP 3" TYP. MF23
