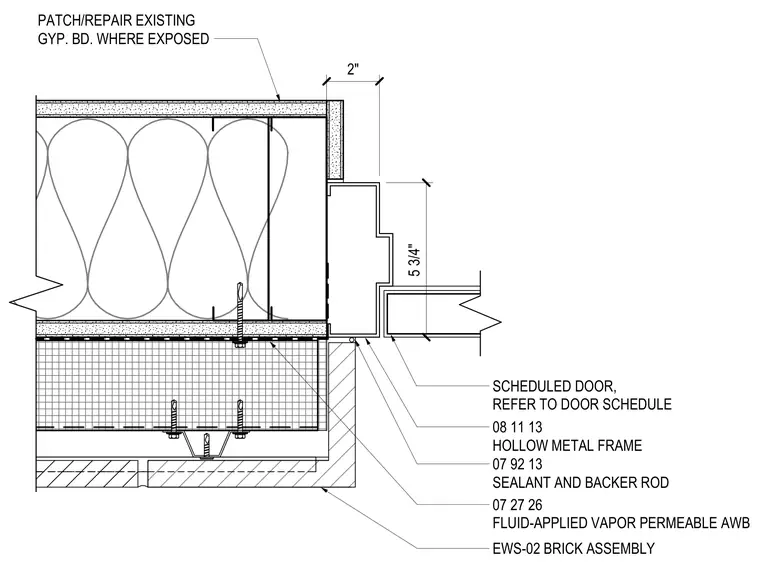

A hollow metal frame ties into a brick veneer wall assembly featuring a fluid-applied vapor permeable air and water barrier. Existing gypsum board is patched and repaired where exposed adjacent to the frame head. A sealant bead and backer rod seal the joint between the frame and the exterior wall assembly. The scheduled door is installed within the five and three-quarter inch deep hollow metal frame profile.
5 3/4" 2" 08 11 13 HOLLOW METAL FRAME PATCH/REPAIR EXISTING GYP. BD. WHERE EXPOSED EWS-02 BRICK ASSEMBLY 07 27 26 FLUID-APPLIED VAPOR PERMEABLE AWB 07 92 13 SEALANT AND BACKER ROD SCHEDULED DOOR, REFER TO DOOR SCHEDULE
