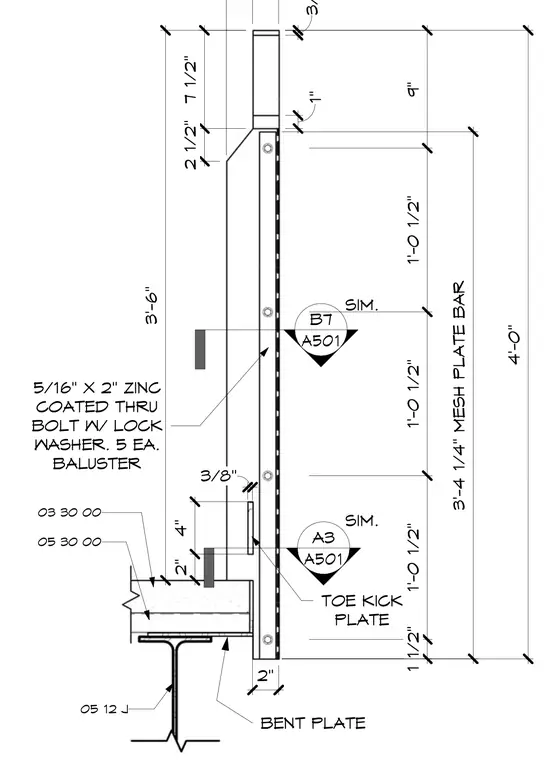

This mesh railing assembly connects to a supporting steel member and concrete slab edge using a bent plate configuration. Five zinc-coated through bolts measuring five-sixteenths of an inch by two inches with lock washers secure the baluster elements. A three-eighths-inch toe kick plate is positioned near the base alongside a three-foot-four-and-one-quarter-inch mesh plate bar. The overall railing height reaches four feet with a three-foot-six-inch rail height above the structural support.
3/8" 2" 9" 1'-0 1/2" 1'-0 1/2" 1'-0 1/2" 1 1/2" A3 A501 B7 A501 5/16" X 2" ZINC COATED THRU BOLT W/ LOCK WASHER. 5 EA. BALUSTER 2 1/2" 7 1/2" 4'-0" 3'-6" SIM. SIM. 03 30 00 05 30 00 05 12 J BENT PLATE 4" 2" 3/8" TOE KICK PLATE 1" 3'-4 1/4" MESH PLATE BAR
