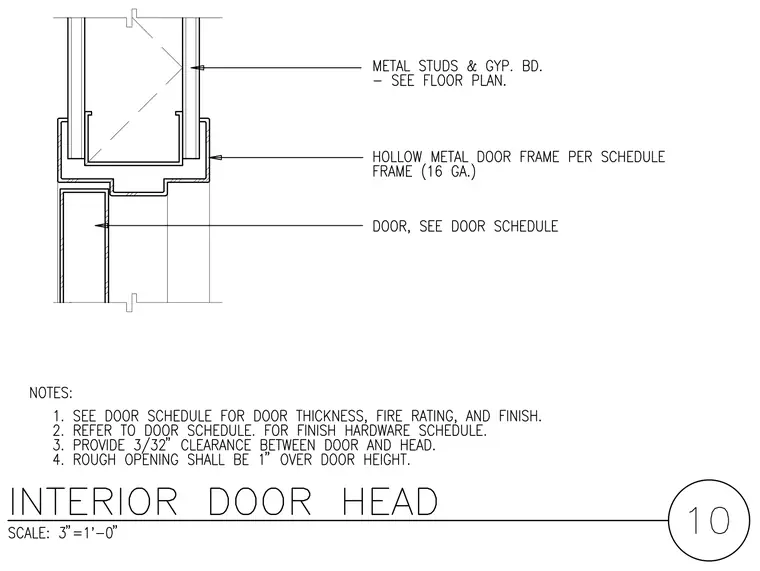

A sixteen-gauge hollow metal frame sets within a metal stud and gypsum board partition at the interior hollow metal door head. A three-thirty-second-inch clearance is provided between the door and the head. The door thickness, fire rating, and finish are sized per the door schedule. The rough opening is specified as one inch over the door height.
