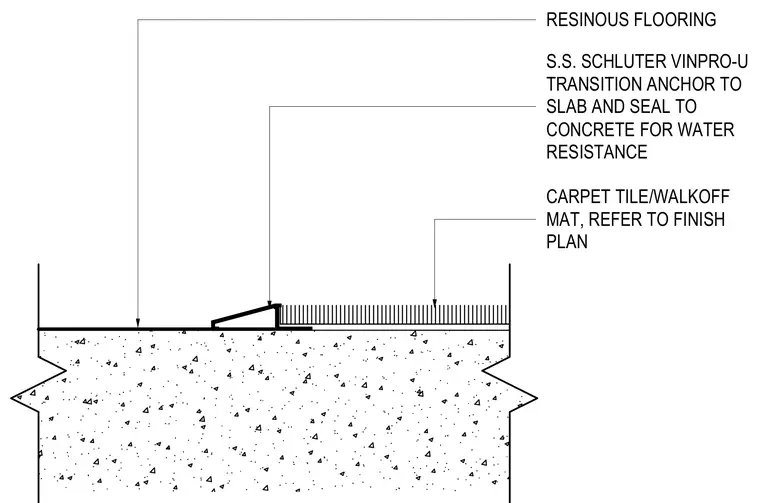

A stainless steel Schluter Vinpro-U transition anchor connects resinous flooring to a carpet tile or walkoff mat over a concrete slab. The transition profile is anchored directly to the slab and sealed against the concrete to ensure water resistance. Resinous flooring terminates on one side of the profile, while carpet tile or walkoff mat meets the opposite side per the finish plan.
CARPET TILE/WALKOFF MAT, REFER TO FINISH PLAN RESINOUS FLOORING S.S. SCHLUTER VINPRO-U TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE
