Guestroom Entry Threshold at Carpet and Tile Transition

Materials

Elements

Doors Waterproofing / Flashing Entrances

About this detail

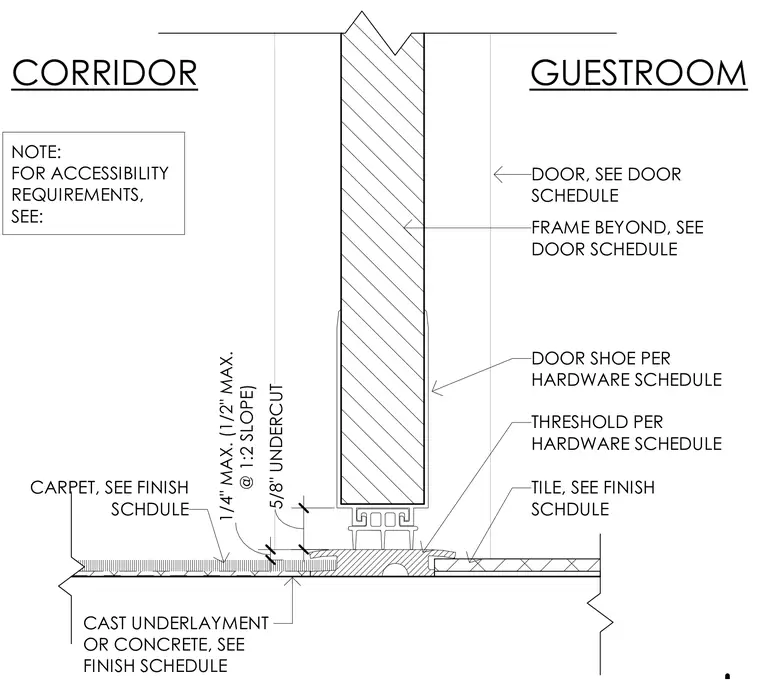

A guestroom entry door transition from a corridor carpet finish to a guestroom tile finish over a cast underlayment or concrete subfloor. A threshold specified per the hardware schedule bridges the flooring materials between the door frame. A door shoe specified per the hardware schedule is fitted to the bottom of the door panel above the threshold. Dimensions indicate a five-eighths inch undercut with a one-to-two slope and a one-quarter inch maximum transition height. A note references accessibility requirements.
