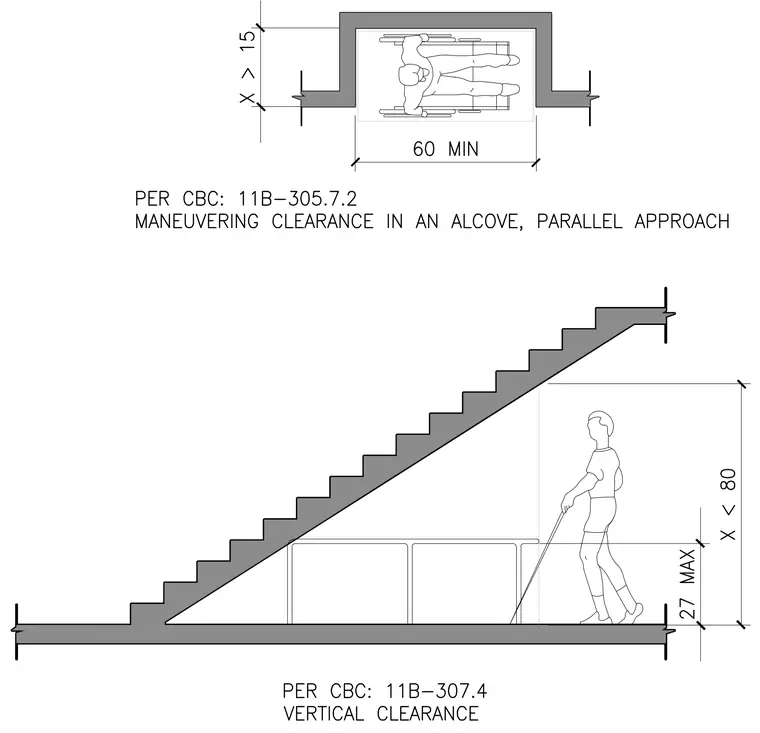

Wheelchair maneuvering clearance in an alcove with a parallel approach requires a minimum width of sixty inches and depth criteria defined per CBC section 11B-305.7.2. Vertical clearance beneath stairs limits protruding objects to a maximum height of twenty-seven inches from the finished floor when vertical headroom drops below eighty inches, complying with CBC section 11B-307.4.
