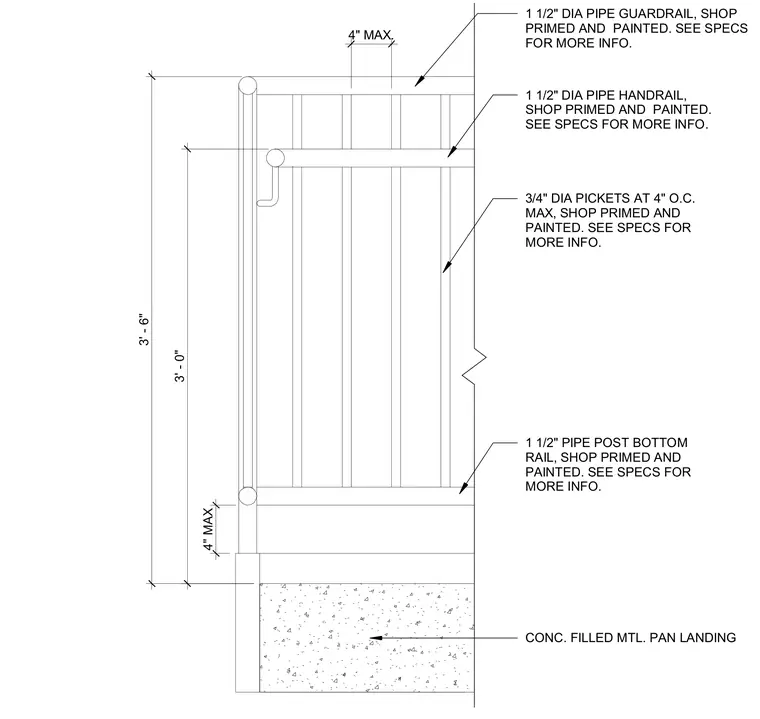

A typical stair guardrail and handrail assembly is mounted to a concrete-filled metal pan landing. The top guardrail consists of a 1 1/2-inch diameter pipe positioned at 3 feet 6 inches above the landing. A separate 1 1/2-inch diameter handrail is mounted below at 3 feet 0 inches. Vertical pickets measure 3/4 inch in diameter and are spaced at a maximum of 4 inches on center. A 1 1/2-inch pipe bottom rail completes the assembly above the stair landing. All metal components are shop primed and painted.
4" MAX. 4" MAX 3' - 0" 3' - 6" CONC. FILLED MTL. PAN LANDING 1 1/2" DIA PIPE GUARDRAIL, SHOP PRIMED AND PAINTED. SEE SPECS FOR MORE INFO. 1 1/2" DIA PIPE HANDRAIL, SHOP PRIMED AND PAINTED. SEE SPECS FOR MORE INFO. 1 1/2" PIPE POST BOTTOM RAIL, SHOP PRIMED AND PAINTED. SEE SPECS FOR MORE INFO. 3/4" DIA PICKETS AT 4" O.C. MAX, SHOP PRIMED AND PAINTED. SEE SPECS FOR MORE INFO.
