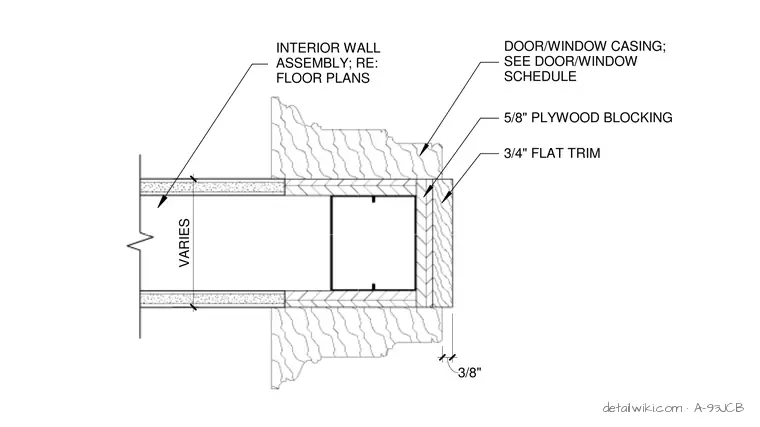

This interior wall framed opening features a door or window casing with a three-eighths inch dimension, three-quarter inch flat trim, five-eighths inch plywood blocking, and an interior wall assembly that varies in thickness per the floor plans.
DOOR/WINDOW CASING; SEE DOOR/WINDOW SCHEDULE 3/4" FLAT TRIM 5/8" PLYWOOD BLOCKING 3/8" VARIES INTERIOR WALL ASSEMBLY; RE: FLOOR PLANS
