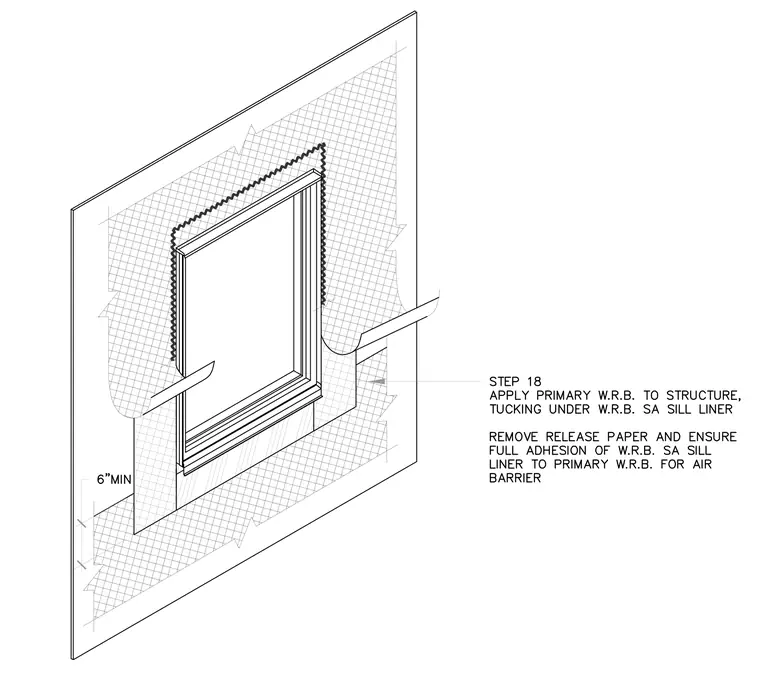

The primary water-resistive barrier is applied to the structure and tucked under the self-adhering water-resistive barrier sill liner. The release paper is removed to ensure full adhesion of the sill liner to the primary water-resistive barrier for continuous air barrier performance. The assembly includes a six-inch minimum clearance dimension.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
