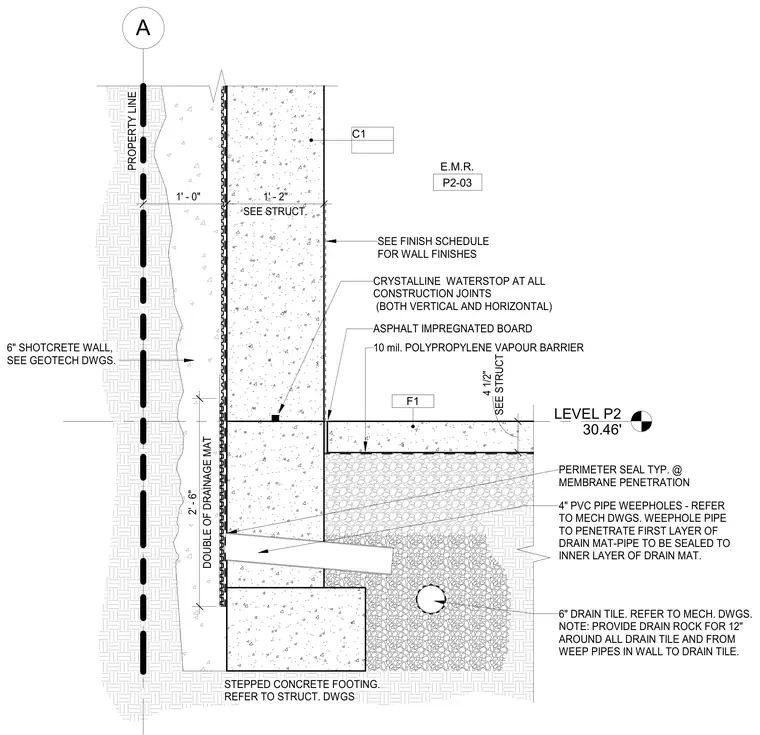

A six-inch shotcrete wall bears on a stepped concrete footing at level P2. A double layer of drainage mat is applied against the exterior of the concrete wall along the property line, backed by an asphalt-impregnated board. A four-inch PVC pipe weephole penetrates the first layer of the drainage mat and is sealed to the inner layer, discharging into a six-inch drain tile surrounded by drain rock. Inside the structure, a ten-mil polypropylene vapor barrier runs beneath the floor slab, and crystalline waterstops are specified at all vertical and horizontal construction joints.
A LEVEL P2 30.46' F1 DOUBLE OF DRAINAGE MAT 2' - 6" C1 ASPHALT IMPREGNATED BOARD SEE STRUCT. 1' - 2" PERIMETER SEAL TYP. @ MEMBRANE PENETRATION STEPPED CONCRETE FOOTING. REFER TO STRUCT. DWGS 6" DRAIN TILE. REFER TO MECH. DWGS. NOTE: PROVIDE DRAIN ROCK FOR 12" AROUND ALL DRAIN TILE AND FROM WEEP PIPES IN WALL TO DRAIN TILE. 6" SHOTCRETE WALL, SEE GEOTECH DWGS. PROPERTY LINE E.M.R. P2-03 SEE STRUCT. 4 1/2" 1' - 0" SEE FINISH SCHEDULE FOR WALL FINISHES 4" PVC PIPE WEEPHOLES - REFER TO MECH DWGS. WEEPHOLE PIPE TO PENETRATE FIRST LAYER OF DRAIN MAT-PIPE TO BE SEALED TO INNER LAYER OF DRAIN MAT. 10 mil. POLYPROPYLENE VAPOUR BARRIER CRYSTALLINE WATERSTOP AT ALL CONSTRUCTION JOINTS (BOTH VERTICAL AND HORIZONTAL)
