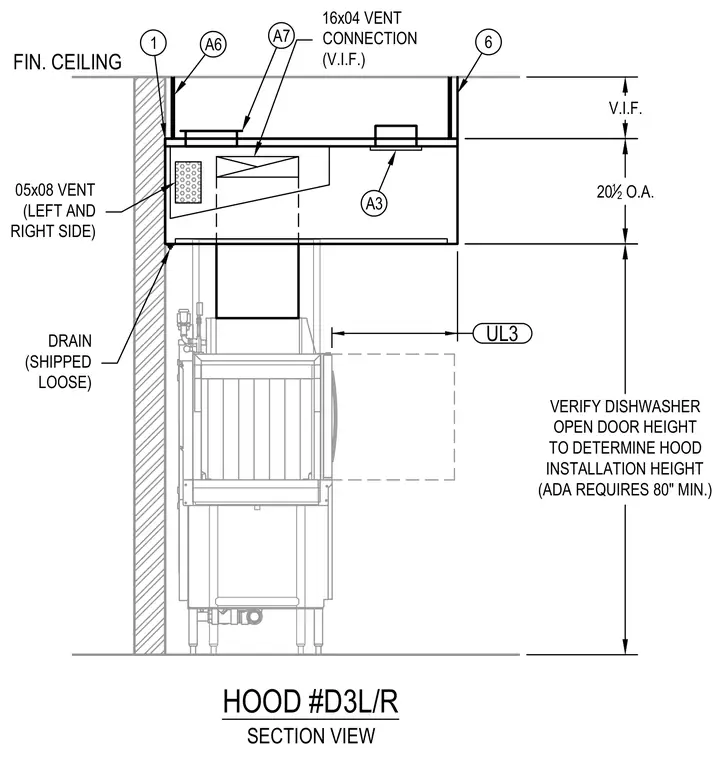

A commercial dishwasher exhaust hood is mounted below the finished ceiling with vertical dimensions verified in the field and an overall height of twenty and one-half inches. The assembly includes a sixteen by four inch vent connection, five by eight inch side vents on the left and right, and a loose-shipped drain. Installation height must be verified against the dishwasher open door height, maintaining an Americans with Disabilities Act requirement of eighty inches minimum.
V.I.F. A7 FIN. CEILING HOOD #D3L/R SECTION VIEW 1 A6 20 1 2 O.A. VERIFY DISHWASHER OPEN DOOR HEIGHT TO DETERMINE HOOD INSTALLATION HEIGHT (ADA REQUIRES 80" MIN.) 6 DRAIN (SHIPPED LOOSE) 16x04 VENT CONNECTION (V.I.F.) 05x08 VENT (LEFT AND RIGHT SIDE) UL3 A3
