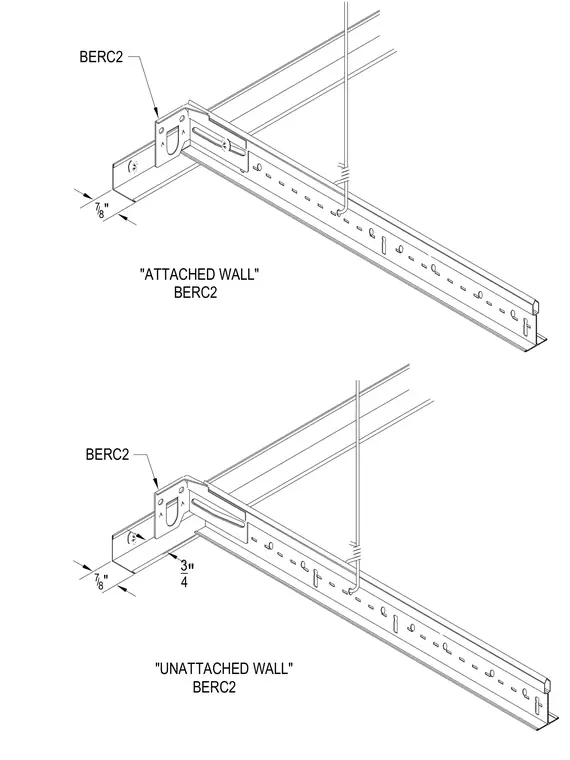

Suspended acoustical ceiling suspension grid system terminating at attached and unattached wall conditions. Main runner tees and wall angles connect using BERC2 clips with specified dimensions of 7/8 inch and 3/4 inch. Hanger wire supports the main runner tee.
