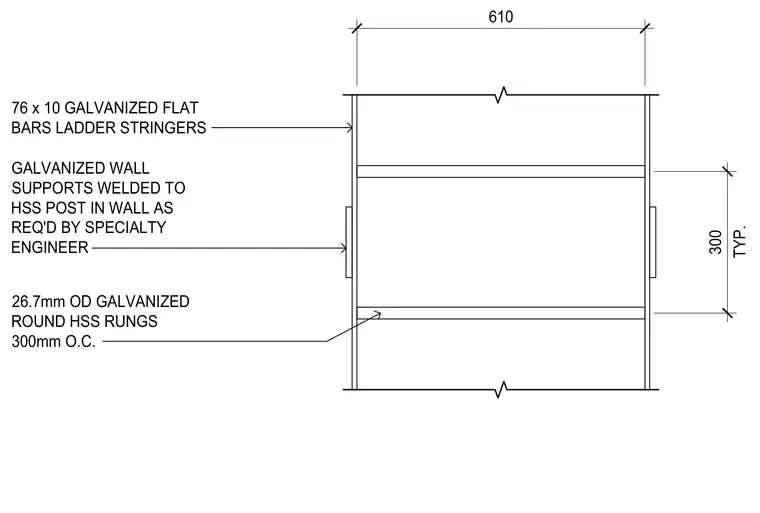

The ladder uses 76 by 10 galvanized flat bars for stringers and 26.7 millimeter outside diameter galvanized round hollow structural section rungs spaced at 300 millimeters on center. Galvanized wall supports are welded to an HSS post within the wall as required by the specialty engineer. The overall ladder width is 610 millimeters.
300 TYP. GALVANIZED WALL SUPPORTS WELDED TO HSS POST IN WALL AS REQ'D BY SPECIALTY ENGINEER 76 x 10 GALVANIZED FLAT BARS LADDER STRINGERS 26.7mm OD GALVANIZED ROUND HSS RUNGS 300mm O.C. 610
