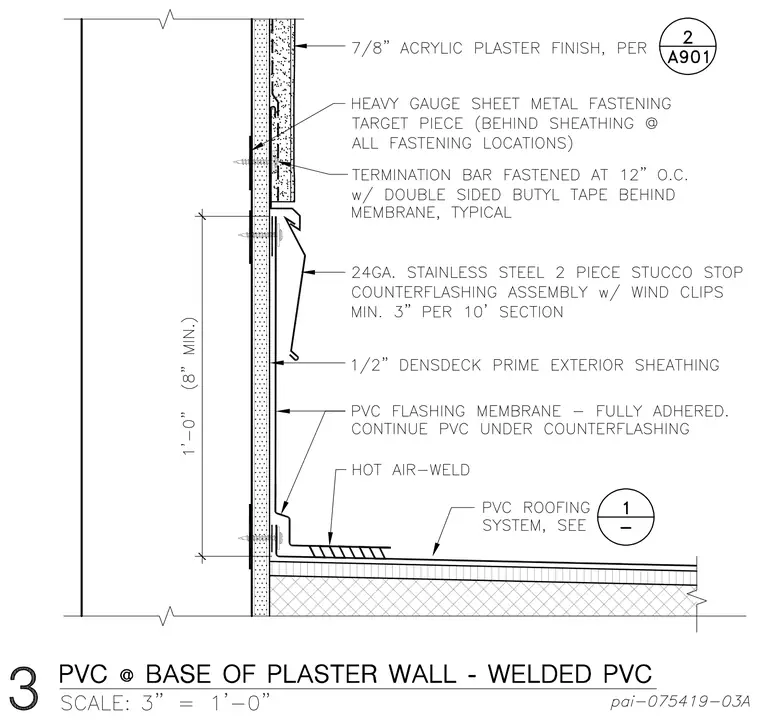

The assembly features a seven-eighths inch acrylic plaster finish over a heavy gauge sheet metal fastening target piece and a termination bar fastened at twelve inches on center with double-sided butyl tape behind the membrane. A twenty-four gauge stainless steel two-piece stucco stop counterflashing assembly with wind clips requires a minimum of three inches per ten-foot section over one-half inch DensDeck Prime exterior sheathing. A fully adhered PVC flashing membrane continues under the counterflashing and is hot air-welded to the PVC roofing system.
