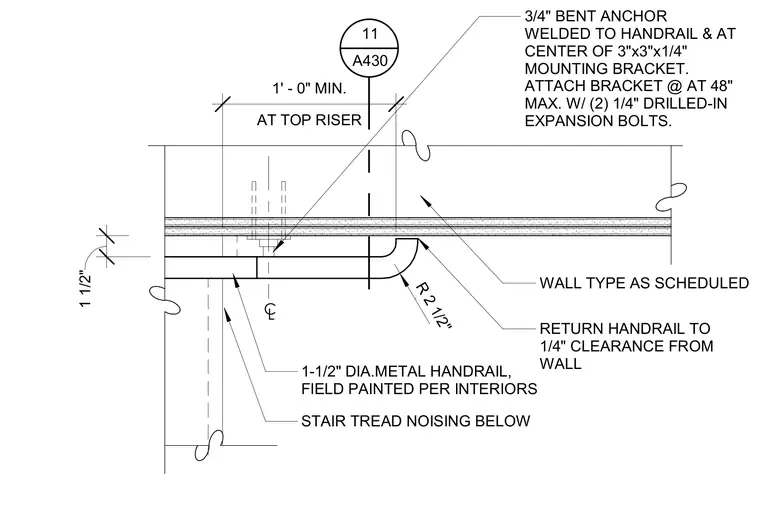

A 1-1/2 inch diameter metal handrail, field-painted per interiors, extends past the top riser with a minimum 1 foot clearance. A 3/4 inch bent anchor is welded to the handrail and centered on a 3 inch by 3 inch by 1/4 inch mounting bracket. The bracket is attached to the wall type as scheduled using two 1/4 inch drilled-in expansion bolts spaced at a maximum of 48 inches on center. The return handrail maintains a 1/4 inch clearance from the wall, positioned above the stair tread noising below.
3/4" BENT ANCHOR WELDED TO HANDRAIL & AT CENTER OF 3"x3"x1/4" MOUNTING BRACKET. ATTACH BRACKET @ AT 48" MAX. W/ (2) 1/4" DRILLED-IN EXPANSION BOLTS. 1-1/2" DIA.METAL HANDRAIL, FIELD PAINTED PER INTERIORS AT TOP RISER 1' - 0" MIN. STAIR TREAD NOISING BELOW RETURN HANDRAIL TO 1/4" CLEARANCE FROM WALL R 2 1/2" C L 11 A430 WALL TYPE AS SCHEDULED 1 1/2"
