Architectural · A-8ZVZ2

Storefront - Jamb - Column

Materials

Cold-formed Steel Timber / Wood Masonry / CMU Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

Columns Beams Walls Storefronts Ceilings Bracing Insulation

Connections

Bracing Connection

About this detail

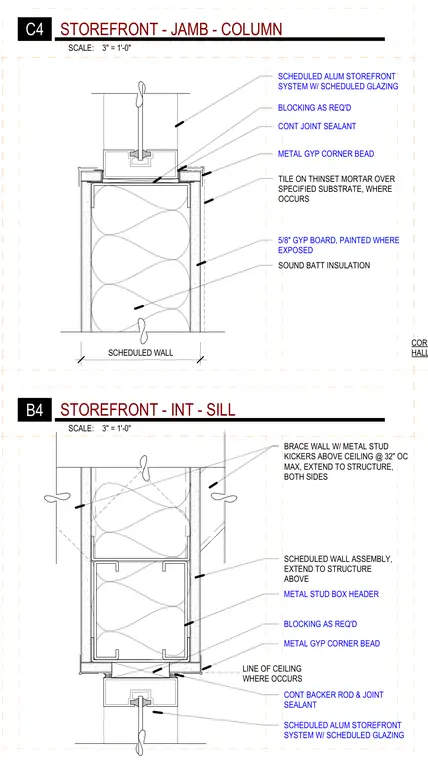

Junction between a scheduled aluminum storefront system with scheduled glazing and a partition wall assembly. The jamb detail (C4) features the storefront frame interfacing with a column and scheduled wall wrapped in five-eighths inch painted gypsum board and sound batt insulation, sealed with continuous joint sealant, backer rod, and metal gypsum corner beads. The interior sill detail (B4) features the head and sill conditions with metal stud box headers, required wood blocking, and metal stud kickers bracing the wall back to the structure above the ceiling at thirty-two inches on center maximum. Tile on thinset mortar over a specified substrate is applied where indicated on the corridor side.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
