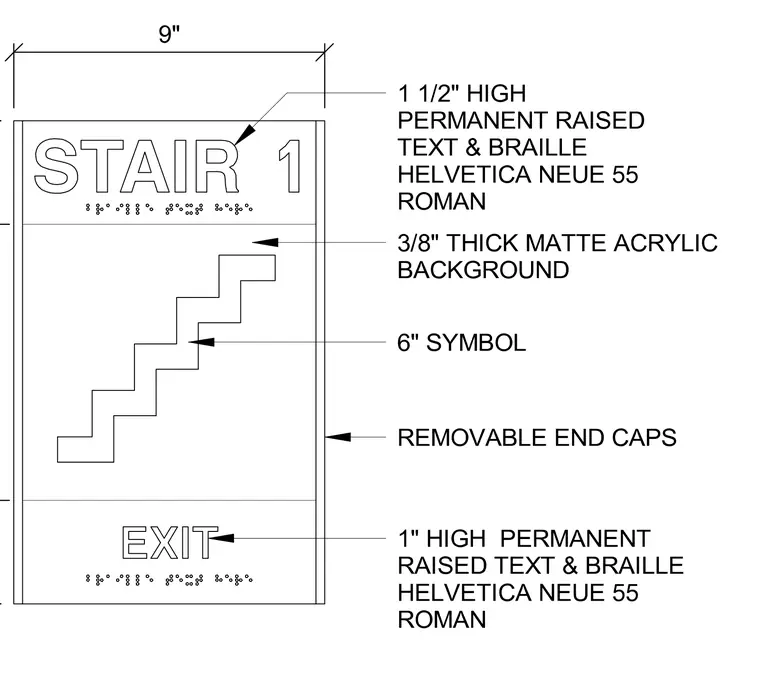

This detail specifies a nine-inch wide ADA compliant stair and exit sign mounted adjacent to the stairwell. The assembly consists of a three-eighths-inch thick matte acrylic background with removable end caps. The top section incorporates one-and-one-half-inch high permanent raised text and Braille in Helvetica Neue 55 Roman font displaying STAIR 1. The center features a six-inch tactile stair symbol, and the bottom section contains one-inch high permanent raised text and Braille displaying EXIT.
