A painted steel bollard with a stainless steel finish or similar coating stands four feet tall above the finished deck level. The concrete deck slab receives a polymethyl methacrylate deck coating limited to level L03. A sealant cant bead is applied at the base of the bollard where it meets the deck surface. Steel plates and stainless steel through-bolts secure the assembly through the concrete slab with a bottom backup plate.

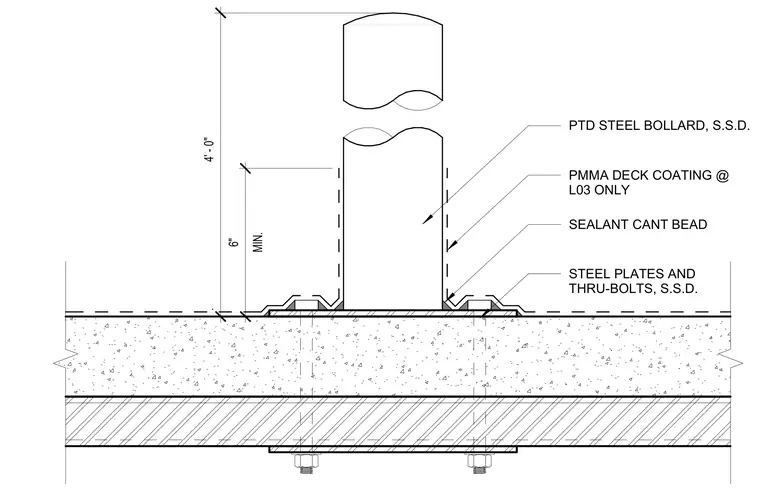

PTD STEEL BOLLARD, S.S.D. MIN. 6" PMMA DECK COATING @ L03 ONLY SEALANT CANT BEAD STEEL PLATES AND THRU-BOLTS, S.S.D. . 4' - 0"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
