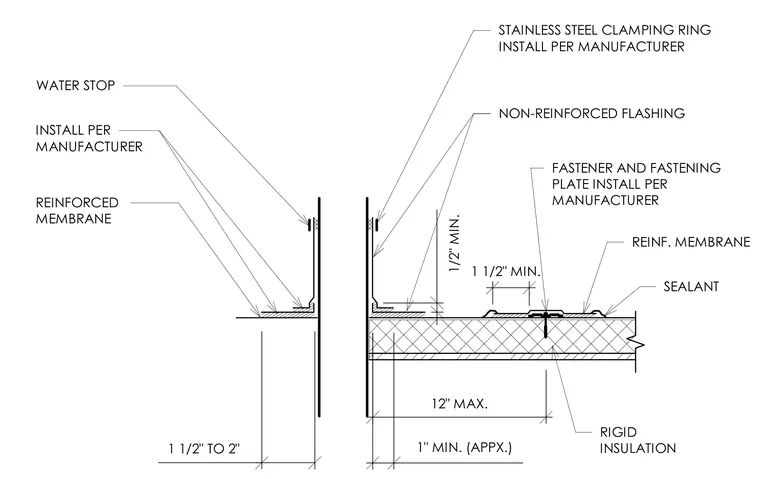

This roof expansion joint detail features a water stop and reinforced membrane installed over rigid insulation. A non-reinforced flashing layer is secured using a fastener and fastening plate installed per the manufacturer recommendations. A stainless steel clamping ring provides positive mechanical attachment at the joint termination. All membrane and sealant installations follow manufacturer specifications for proper waterproofing continuity across the expansion gap.
1 1/2" TO 2" 12" MAX. 1" MIN. (APPX.) 1/2" MIN. 1 1/2" MIN. INSTALL PER MANUFACTURER REINFORCED MEMBRANE WATER STOP STAINLESS STEEL CLAMPING RING INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE INSTALL PER MANUFACTURER NON-REINFORCED FLASHING REINF. MEMBRANE SEALANT RIGID INSULATION
