Architectural · A-8Z7C6

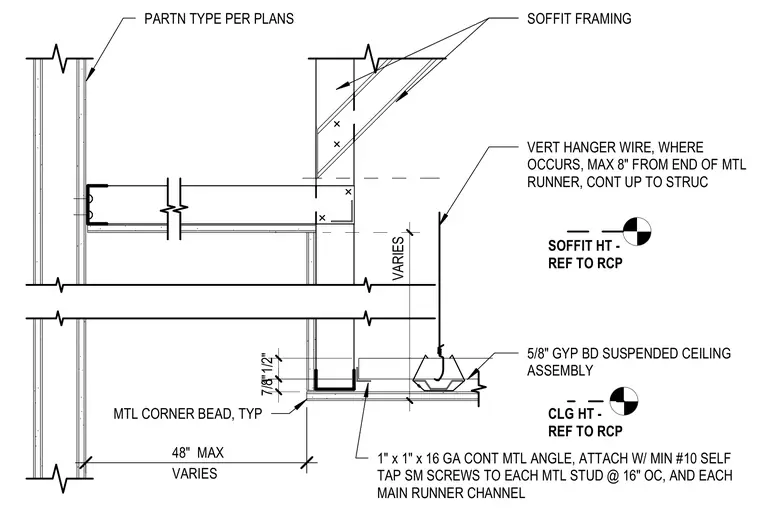

Gypsum Board Framed Reverse Soffit Detail

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

About this detail

A continuous 1 inch by 1 inch by 16 gauge metal angle is fastened to each metal stud at 16 inches on center and to each main runner channel using minimum number 10 self-tapping sheet metal screws. Vertical hanger wires support the suspended ceiling assembly and are spaced a maximum of 8 inches from the end of the metal runner, continuing up to the structural soffit. Gypsum board is installed over the metal framing with typical metal corner beads defining the exterior edges. Partition types and soffit heights are coordinated per the reflected ceiling plan.
