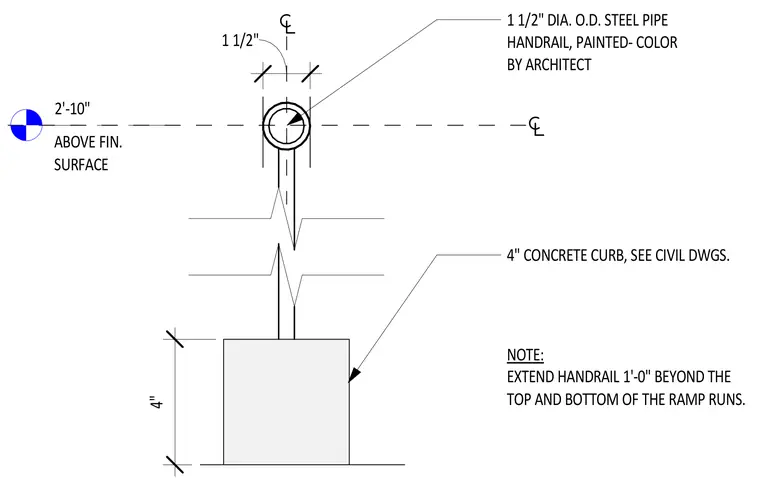

A 1 1/2 inch diameter outside-diameter steel pipe handrail is mounted above a 4 inch concrete curb. The center of the handrail is positioned 2 feet 10 inches above the finished surface. A note specifies to extend the handrail 1 foot 0 inches beyond the top and bottom of the ramp runs, with the paint color selected by the architect.
ABOVE FIN. SURFACE NOTE: EXTEND HANDRAIL 1'-0" BEYOND THE TOP AND BOTTOM OF THE RAMP RUNS. 1 1/2" DIA. O.D. STEEL PIPE HANDRAIL, PAINTED- COLOR BY ARCHITECT 2'-10" 4" CONCRETE CURB, SEE CIVIL DWGS. 4" 1 1/2"
