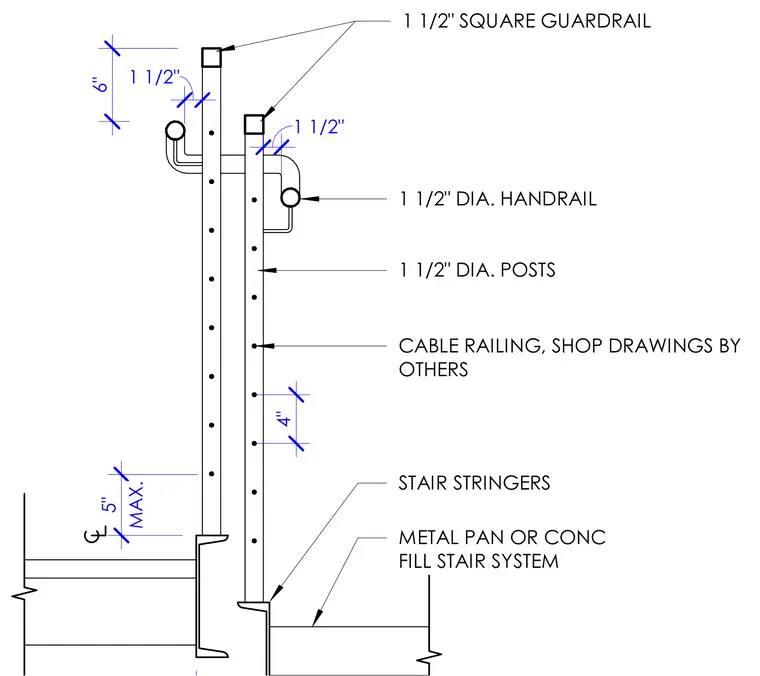

A stair railing assembly mounts to stair stringers carrying a metal pan or concrete fill stair system. One-and-a-half-inch diameter posts support a one-and-a-half-inch square guardrail at the top and a one-and-a-half-inch diameter handrail mounted to the side. Cable railing spans between the posts with four-inch spacing, noted to be provided by shop drawings by others.
1 1/2" SQUARE GUARDRAIL MAX. 5" 6" 1 1/2" 1 1/2" DIA. POSTS STAIR STRINGERS METAL PAN OR CONC FILL STAIR SYSTEM 1 1/2" DIA. HANDRAIL 4" CABLE RAILING, SHOP DRAWINGS BY OTHERS 1 1/2"
