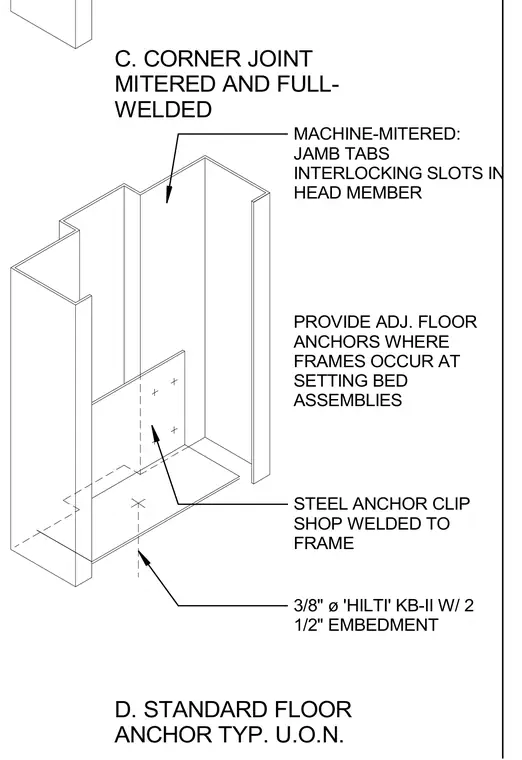

Standard floor anchor connection for a metal frame assembly. The head and jamb members feature machine-mitered corners with jamb tabs interlocking into slots in the head member, and the corner joint is mitered and full-welded. A steel anchor clip is shop-welded to the frame and secured to the floor assembly with 3/8-inch diameter Hilti KB-II expansion anchors featuring 2-1/2 inches of embedment. Adjustable floor anchors are provided where frames occur at setting bed assemblies unless noted otherwise.
MACHINE-MITERED: JAMB TABS INTERLOCKING SLOTS IN HEAD MEMBER STEEL ANCHOR CLIP SHOP WELDED TO FRAME PROVIDE ADJ. FLOOR ANCHORS WHERE FRAMES OCCUR AT SETTING BED ASSEMBLIES 3/8" ø 'HILTI' KB-II W/ 2 1/2" EMBEDMENT C. CORNER JOINT MITERED AND FULL- WELDED D. STANDARD FLOOR ANCHOR TYP. U.O.N.
