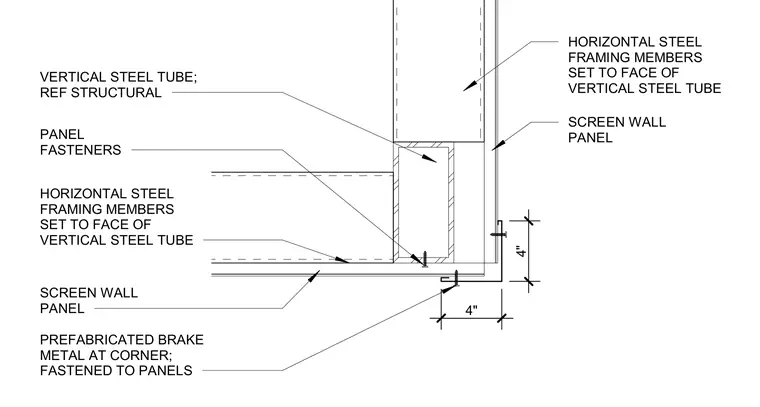

Prefabricated brake metal at the corner connects to overlapping screen wall panels using panel fasteners. Horizontal steel framing members set flush to the face of the vertical steel tube support the wall panels. The vertical steel tube serves as the primary structural support referenced from structural drawings.
VERTICAL STEEL TUBE; REF STRUCTURAL PANEL FASTENERS PREFABRICATED BRAKE METAL AT CORNER; FASTENED TO PANELS 4" 4" SCREEN WALL PANEL SCREEN WALL PANEL HORIZONTAL STEEL FRAMING MEMBERS SET TO FACE OF VERTICAL STEEL TUBE HORIZONTAL STEEL FRAMING MEMBERS SET TO FACE OF VERTICAL STEEL TUBE
