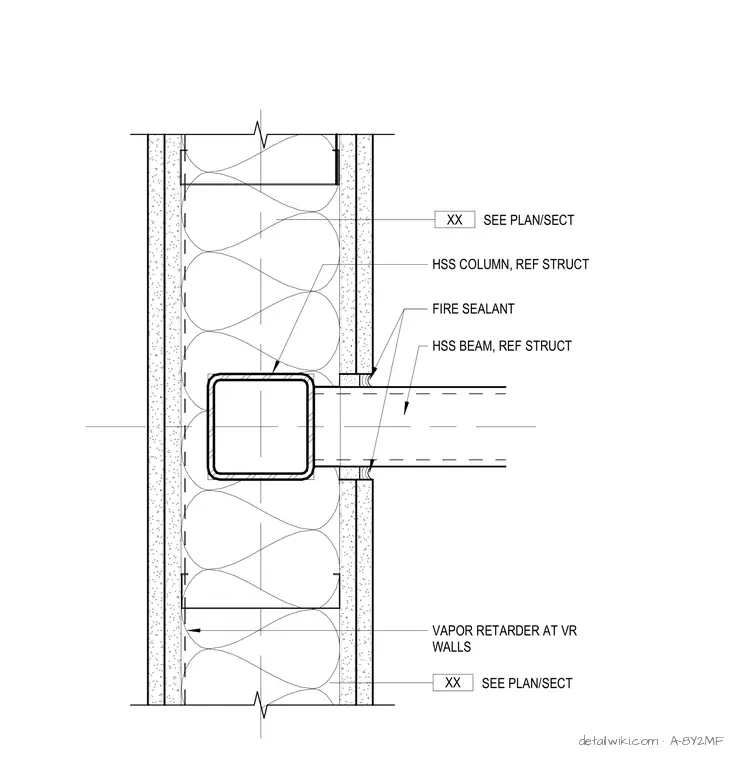

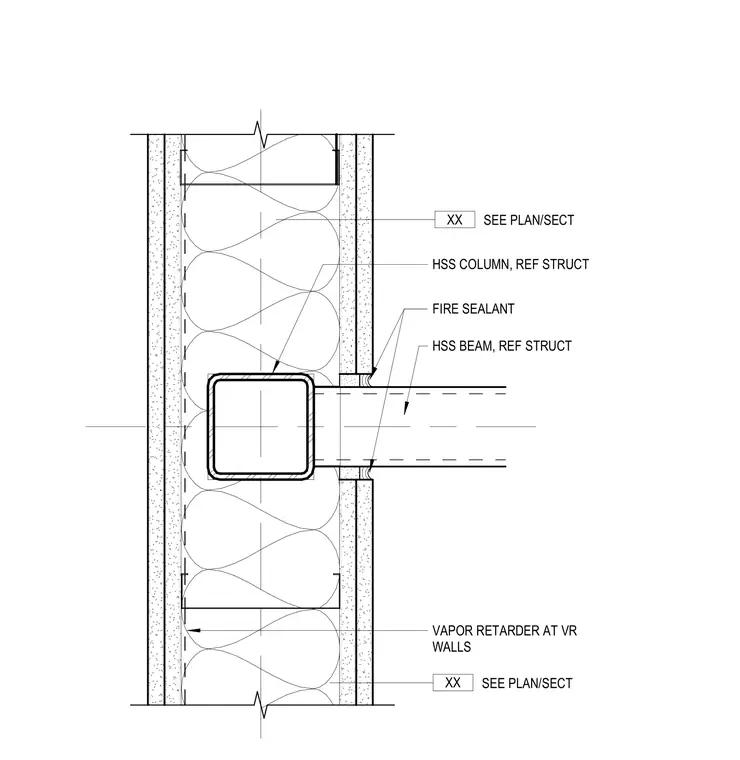

A hollow structural section beam penetrates a fire-rated wall assembly at a hollow structural section column. Fire sealant fills the annular space between the beam and the wall finish to maintain the fire rating of the partition. A vapor retarder is installed at the interior face of the wall assembly. Structural member sizes for the hollow structural section column and beam are referenced to the structural drawings.
Text on the drawing
SEE PLAN/SECT XX SEE PLAN/SECT XX VAPOR RETARDER AT VR WALLS FIRE SEALANT HSS COLUMN, REF STRUCT HSS BEAM, REF STRUCT
