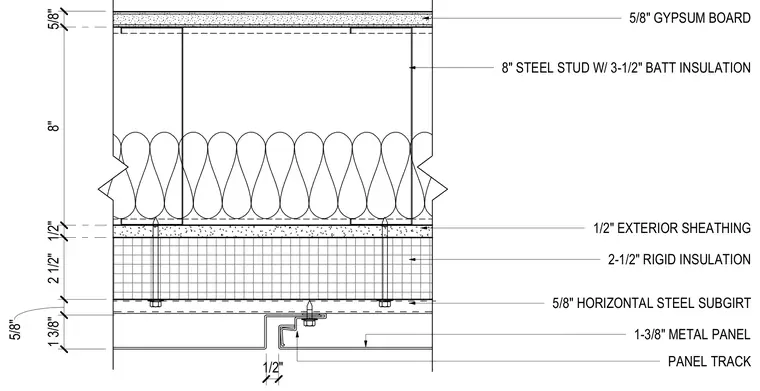

This exterior wall assembly features an 8-inch steel stud framing wall filled with 3-1/2-inch batt insulation and finished on the interior with 5/8-inch gypsum board. The exterior side is sheathed with 1/2-inch exterior sheathing, followed by a 2-1/2-inch layer of rigid insulation. A 5/8-inch horizontal steel subgirt is fastened through the insulation layers into the backup wall. An exterior metal panel with a 1-3/8-inch depth and a panel track system is secured to the horizontal steel subgirt.
5/8" 8" 1/2" 2 1/2" 5/8" 1 3/8" 1/2" 5/8" GYPSUM BOARD 8" STEEL STUD W/ 3-1/2" BATT INSULATION 1/2" EXTERIOR SHEATHING 2-1/2" RIGID INSULATION 5/8" HORIZONTAL STEEL SUBGIRT 1-3/8" METAL PANEL PANEL TRACK
