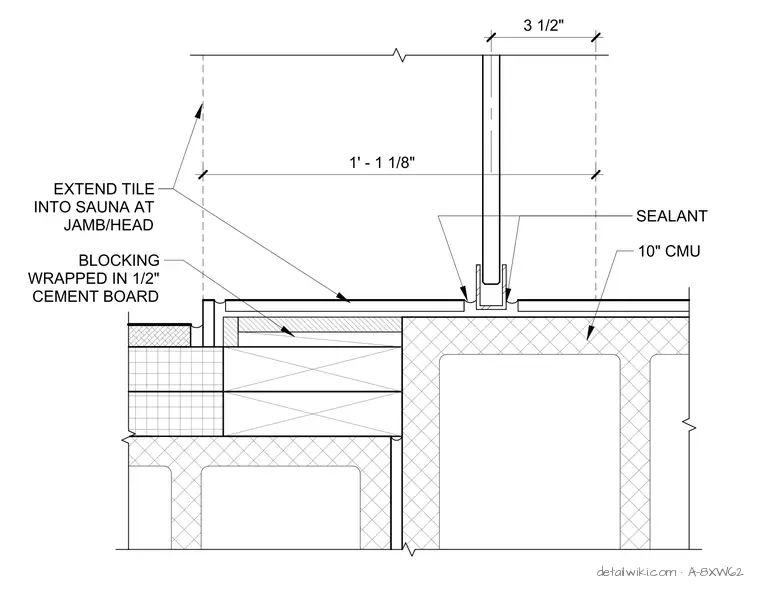

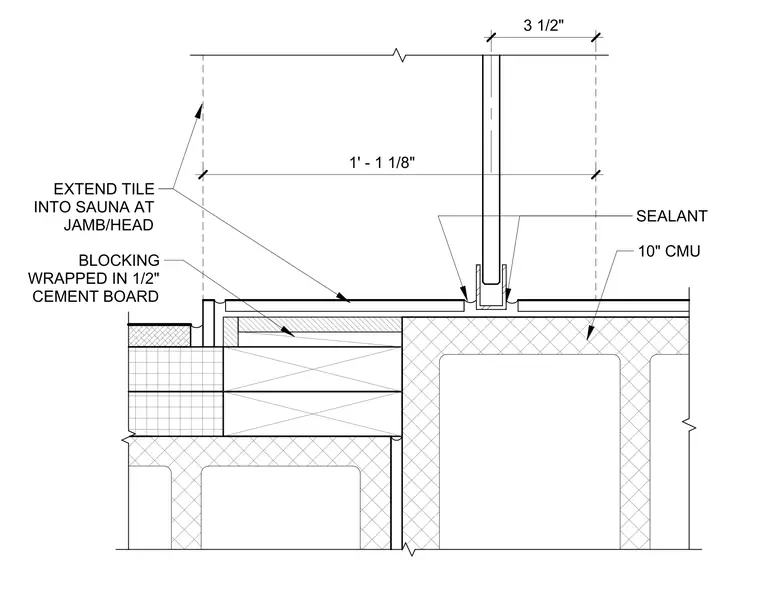

A glass partition jamb assembly anchors to a 10-inch concrete masonry unit wall. The glass panel sits within a U-channel track, sealed on both sides with sealant. Wood blocking wrapped in 1/2-inch cement board forms the adjacent wall construction. Tile finish extends into the sauna at the jamb and head locations.
