A 42-inch high guardrail constructed of 1-1/2 inch galvanized steel pipe is anchored into cast-in-place pipe sleeves with a 1-inch exposed surface for fasteners. Balusters are spaced typically at 4-foot on-center intervals, arranged to prevent the passage of a 21-inch sphere. The guardrail is omitted where the retaining wall height is less than 30 inches. The assembly is engineered to resist a linear load of 50 pounds per linear foot in accordance with Section 4.5.1 of ASCE 7 and IBC 2015 standards.

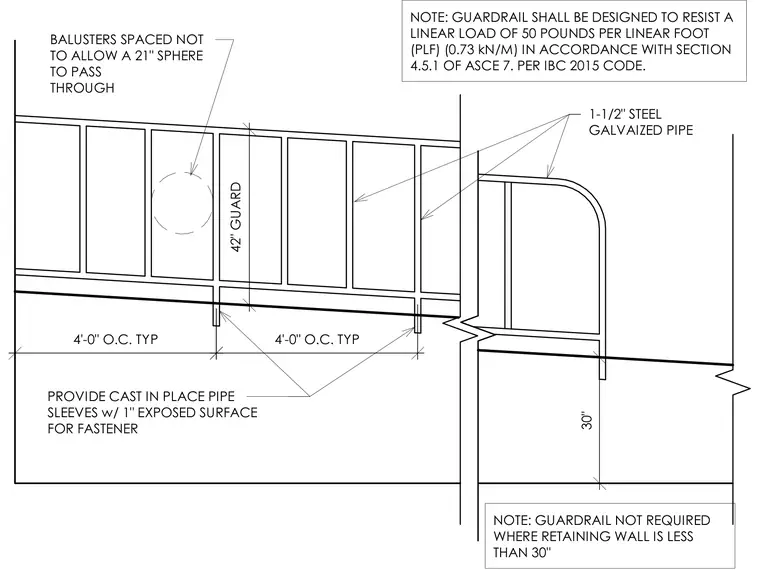

4'-0" O.C. TYP 42" GUARD 30" 4'-0" O.C. TYP BALUSTERS SPACED NOT TO ALLOW A 21" SPHERE TO PASS THROUGH 1-1/2" STEEL GALVAIZED PIPE NOTE: GUARDRAIL NOT REQUIRED WHERE RETAINING WALL IS LESS THAN 30" PROVIDE CAST IN PLACE PIPE SLEEVES w/ 1" EXPOSED SURFACE FOR FASTENER NOTE: GUARDRAIL SHALL BE DESIGNED TO RESIST A LINEAR LOAD OF 50 POUNDS PER LINEAR FOOT (PLF) (0.73 kN/M) IN ACCORDANCE WITH SECTION 4.5.1 OF ASCE 7. PER IBC 2015 CODE.
