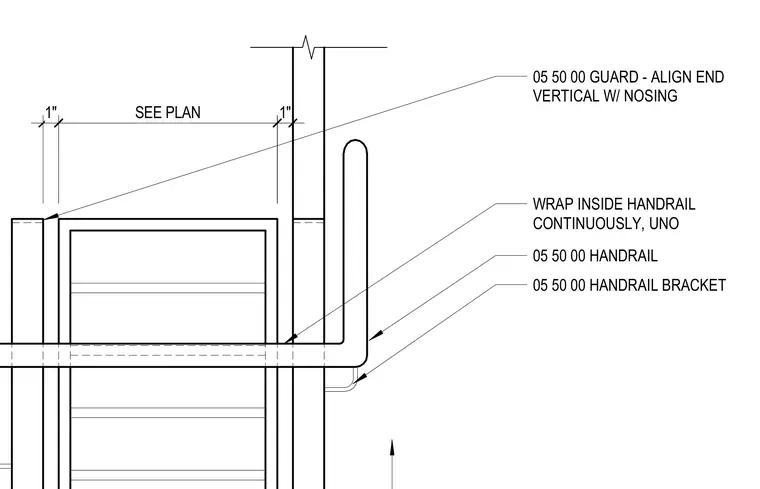

The continuous handrail wraps inside with a continuous weld unless noted otherwise, secured to the stair guard via a handrail bracket. The end vertical aligns with the stair nosing, maintaining a one-inch clearance as specified per plan.
05 50 00 GUARD - ALIGN END VERTICAL W/ NOSING 05 50 00 HANDRAIL 05 50 00 HANDRAIL BRACKET WRAP INSIDE HANDRAIL CONTINUOUSLY, UNO 1" 1" SEE PLAN
