45 KVA Transformer and Distribution Panel Wiring Diagram

About this detail

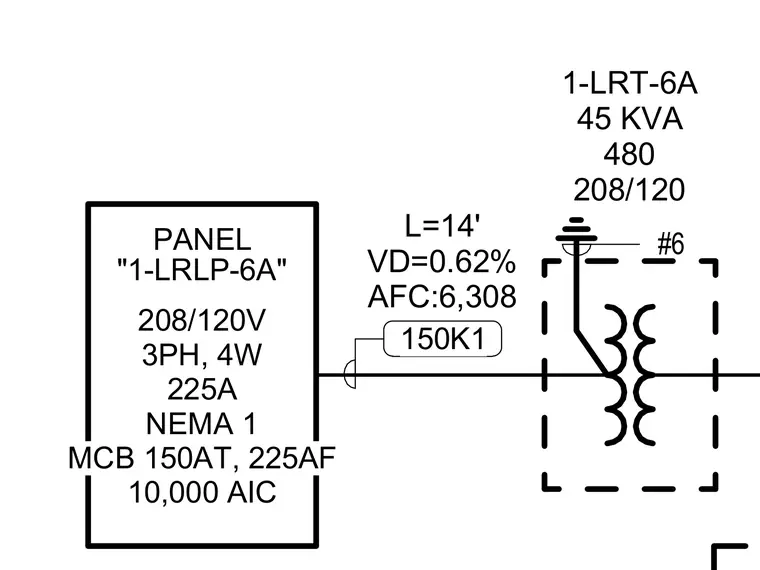

An electrical one-line diagram details a 45 KVA transformer stepping down voltage to a 208/120V, 3-phase, 4-wire distribution panel designated 1-LRLP-6A. The panel features a 225A NEMA 1 enclosure with a 150AT, 225AF main circuit breaker and a 10,000 AIC rating. The circuit run includes a #6 grounding conductor, a length of 14 feet, a voltage drop of 0.62 percent, and available fault current of 6,308 amps.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
